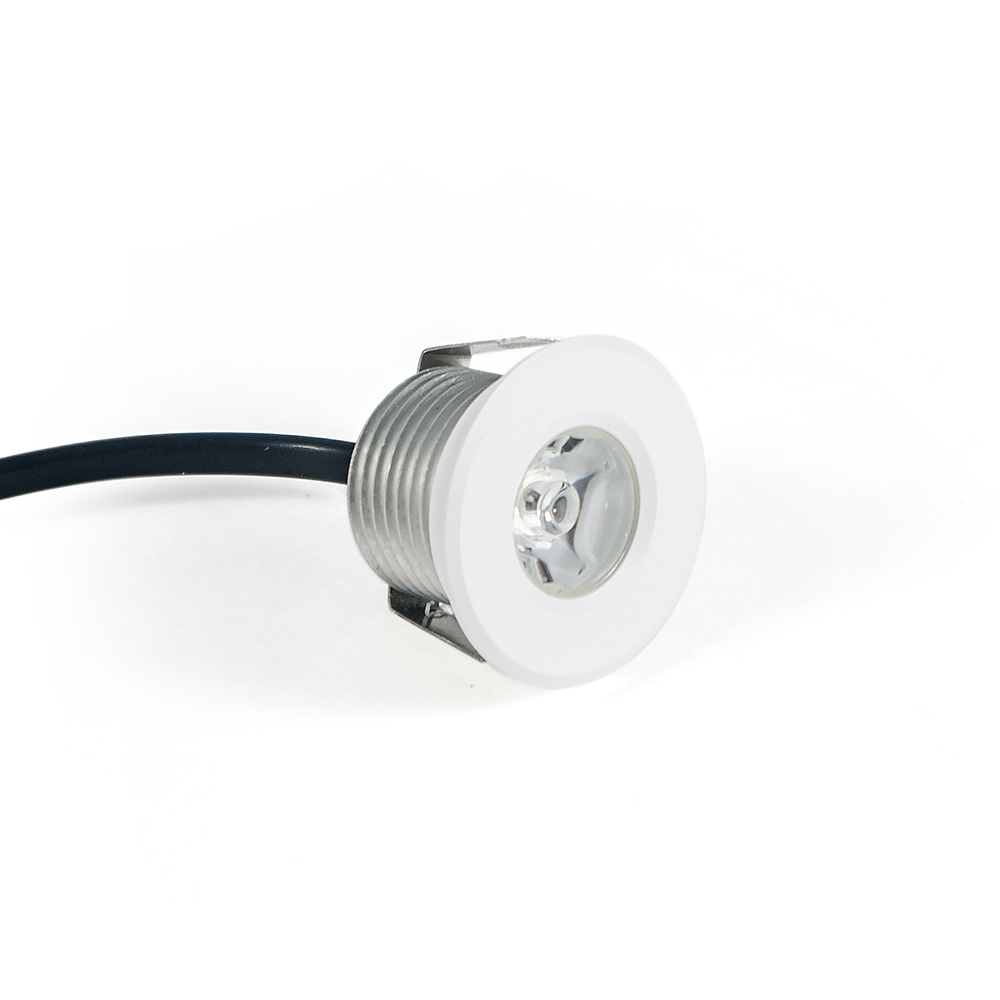

Mini LED Deck Light

Print
Available in metal or PC trims, our Mini LED Deck Light includes an LED light engine and trim sold as finished product. cETLus listed and wet location rated.
Description

ALEDECO Global's Mini Mini LED Deck Light includes 1W x Power LED with lens and many trims options for recessed installation and great for step, deck, and outdoor applications. High-quality trim with many style options. IP67 for indoor or outdoor use.

Constant voltage triac dimmable driver.

Plenum-rated wire is available upon request.

Can be Packaged in custom sets for Private Label and OEM Customers.

Specifications Chart

Product Code ALED-RD12-1W
Voltage 12V/24V DC or AC/DC
Wattage 1W (1 COB LED)
Lumens 90
Beam Degree 45°
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / 6000K / Red / Green / Blue / RGB
Dimensions Ø11/16 x H11/8" (Ø26.5 x H31mm)
Hole Cutout 13/8” (35mm)
Trim Color Brushed Nickel, Black, White, Oil Rubbed Bronze, Dark Brown
Trim Options Round (40mm), Round (50mm), Round (70mm)
IP Rating IP67
Certifications RoHS Compliant, cETLus, CE

Features

  • Fully sealed for outdoor use
  • Spring clips to allow simple pressure fit installation
  • 45° beam
  • Aluminum housing
  • Dimmable
  • +50,000 hour lifespan
  • 3 years warranty

Full Sets Available with custom packaging (Options include LED Drivers, # of Puck LED Puck Lights, switches, plug, wire lengths)

Applications

  • Step lighting
  • Deck lighting
