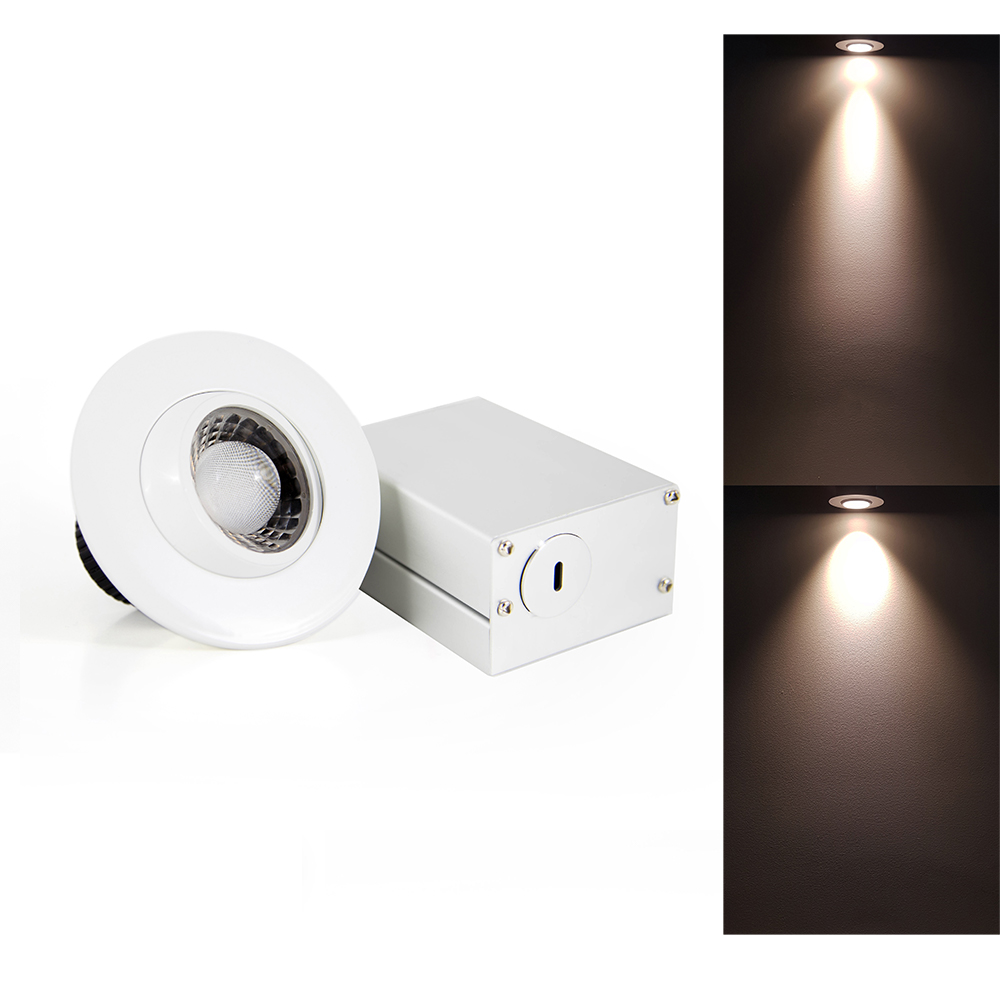

3” Round Gimbal LED Downlight

Print
High voltage downlight features an adjustable beam degree and 360° gimbal rotation. This downlight is suitable for low clearance applications, soffit lighting, and architectural lighting. Includes a light engine and dimmable driver.

IC & Damp location rated. Patent pending.
Description

Specifications Chart

Product Code ALED-HV01-RD-G
Voltage 120V AC
Wattage 8W
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K
# of LEDs 1 COB LED
Lumens 775
Beam Degree Adjustable from 20 - 40°

Features

  • 360° gimbal rotation
  • Beam angle adjustable 20 to 40°
  • Dimmable
  • Low clearance applications
  • Hardwire junction box

Applications

  • Downlighting
  • Soffit lighting
  • Low clearance lighting
  • Architectural

Product Details

Housing Aluminum
Diameter 3-3/8" (85mm)
Height 2-1/4" (58mm)
Cutout Size 2-3/4" (70mm)

Tech Details

IP Rating N/A
Location IC & Damp
Certification RoHS Complaint, cETLus, CE, Energy Star Pending
