RD7 Swivel LED Light Set

Print

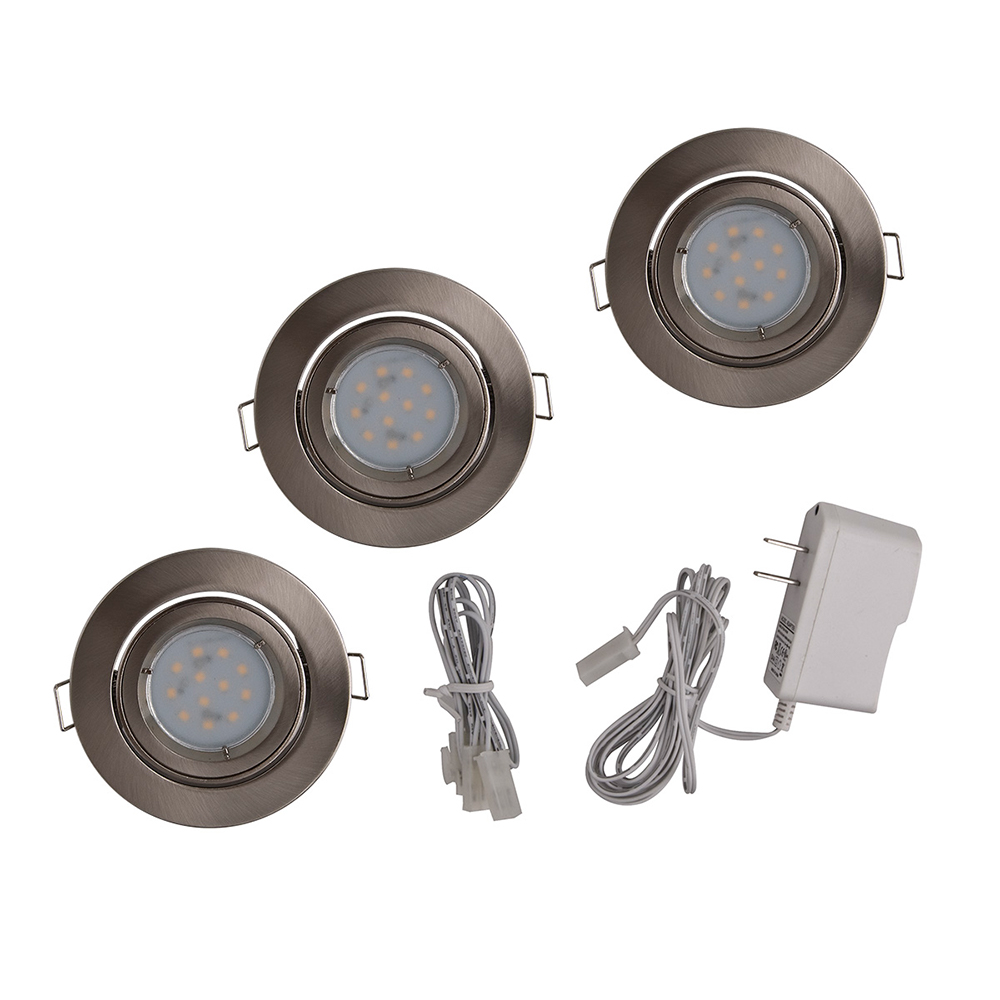

RD7 LED Swivel Light with Driver for Recess installations so you can direct the light, only 2 Watts, available in White, Black or Brushed Nickel housing. Includes, LED Light engine and swivel trim housing and LED Driver in a single box. Can be packaged in White box or Full Color Packaging. This is single set, also can be 3 Light or 5 Light set. cETLus Listed
Description

ALEDECO Global's RD7 Swivel Set inside a swivel trim Housing with LED Driverpuck light includes 12 Super bright 5050SMD LEDs (WW, CW or RGB Colour Changing). Available in frosted (popular) or clear lens. Thin profile, that can swivel low heat and long lifespan.  Also available with an MR16 LED Bulb for 30 Degree light output with MR16 Socket included.

Easy Hardwire Installation with LED Driver you bring the wire into.  So Cut hole, attach wire the Driver and lock, put a driver into the ceiling and put light into the hole cut out, direct light where wanted. Done

This Swivel Light Set is dimmable if you have 12VDC Dimmer after the driver.

Specifications Chart

Product Code ALED-RD7-Swivel Set
Voltage 12V DC, 24VDC, 10-30VDC
Wattage 2W
# of LEDs 12 (9 & 15 LED option)
Lumens 160 (330 with 5W MR16 LED)
Beam Degree 120°
Color Temperature WW 3000K / NW 4500K / CW 6000 (RGB/Red/Green/Blue)
Dimensions  Ø35 x 0.85in  (Ø85 x 21.5mm)
Hole Cutout Size 2.75"
Replaces 15W Halogen
Housing Metal (Brushed Nickel, BK or WH)
Certifications cETLus, (UL & CSA), CE

Features

  • SMD LED technology
  • Recessed and can swivel turn to direct the light
  • Modern design
  • Clear or frosted glass lens
  • Available finishes - Brushed nickel, black or white
  • Full Sets Available with custom packaging (Options include: LED Drivers, # of Puck LED Puck Lights, switches, plug, wire lengths)

Applications

  • Cabinet lighting
  • Display lighting
  • RV and Boat Lighting
