RD09 LED Step Deck Light Set

Print

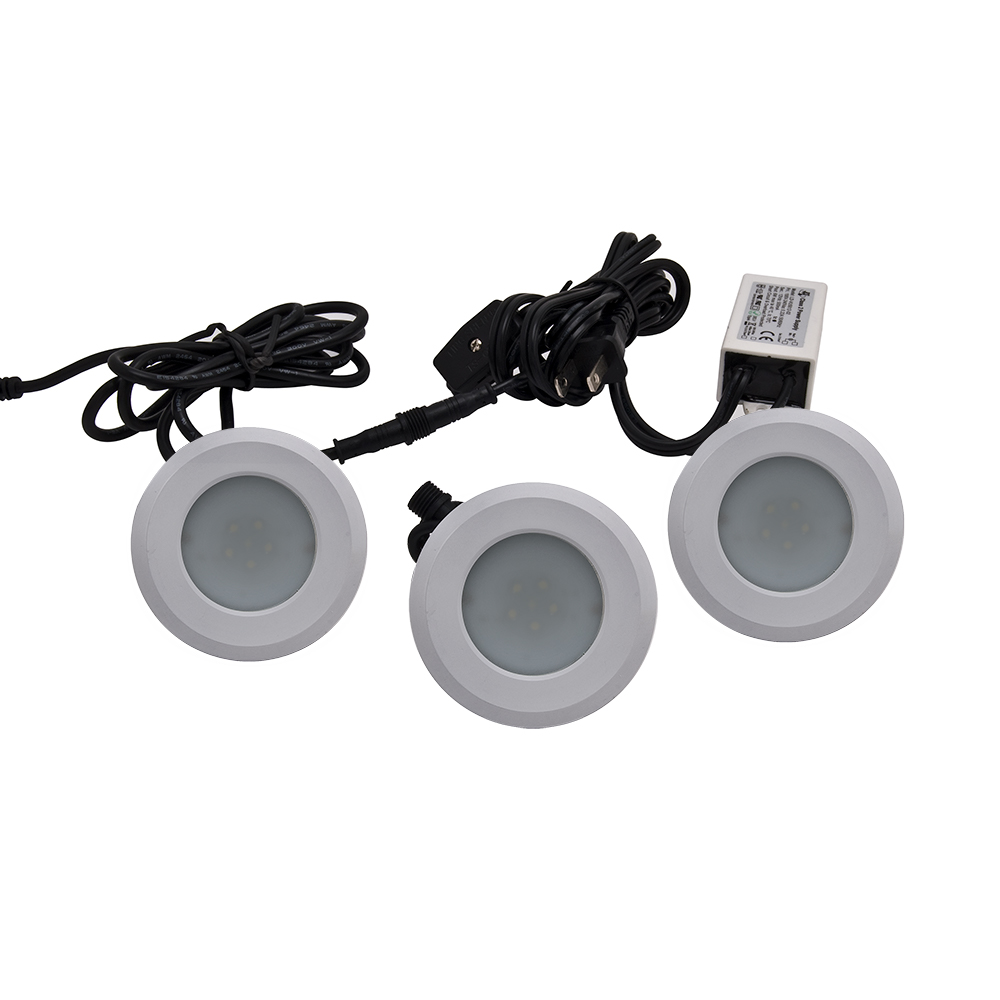

Includes 3 or 6 recessed LED Deck lights, outdoor LED Driver with outdoor wiring kit packaged in full color packaging or white box.. We can make with 6 LEDs in Brushed Chrome or Chrome Trim, 12VDC, IP67, sealed for outdoor use. Can be made in custom sets with outdoor rated LED Driver (CE or UL Listed). 2.5" cut out or 55-60mm. Trim is 2.75", 70mm. Europe Plug with CE LED Driver for outdoor or North American Plug with UL LED Driver for outdoor.
Description

ALEDECO Global's RD09 LED Step and Deck Light Set is fully sealed with a frosted housing.  IP67.  Designed for Deck Manufacturers to add to their product line.  3rd Party IP67 report available.

Custom Package sets available.

Specifications Chart

Product Code ALED - RD09 Kit
Voltage 12V DC, 100-277V input from Outdoor Driver
Wattage 0.4W/each
# of LEDs 6
Lumens 65
Beam Degree 90°
Color Temperature WW 3000K / NW 4500K / CW 6000
Dimensions  Ø70 x H22mm
Certifications CE & cETLus listed LED fixture at 12V DC (CSA and UL standards)

Features

  • Solid-state LED Technology
  • Recessed installation
  • Modern design
  • +50,000 hour lifespan
  • Fully packaged for DIY use

Applications

  • Step lighting
  • Deck lighting
  • Path lighting
  • Ceiling or wall lighting
Ask a question about this product

Downloads

Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
