RD12 LED Bolt

Great for locking RD12 LED into thin materials.

ALEDECO Global's LED Bolt provides an alternate solution for installing RD12's into thin materials and vibrating environments, like boats, RVs, cars, and railings. Just twist the backing nut to the back of the bolt LED light so that it locks the light in place.

 Specification Charts

Product Code

ALED-RD12-B-2 (0.5W)
ALED-RD12-B-1W (1W)
ALED-RD12-B-2W (2W)

Voltage 10-30V DC / 11-15V DC / 12V DC / 24V DC
Wattage 0.5W
# of LEDs 2 x 2835 LED (0.5W)
1 x 1W COB LED (1W)
2 x 2W COB LED (2W)
Lumens 65 (0.5W)
90 (1W)
160 (2W)
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / 6000K / RGB
Cut-out Dimensions Ø13/8” (35mm)
Trim Options Round (40mm, 50mm, 70mm), Square, Scoop
Finish Options Brushed Nickel, Black, White or Custom
Certifications RoHS Compliant, cETLus, CE


  • Wide voltage ranges
  • Great for locking into thin materials
  • Good for vibrating environments

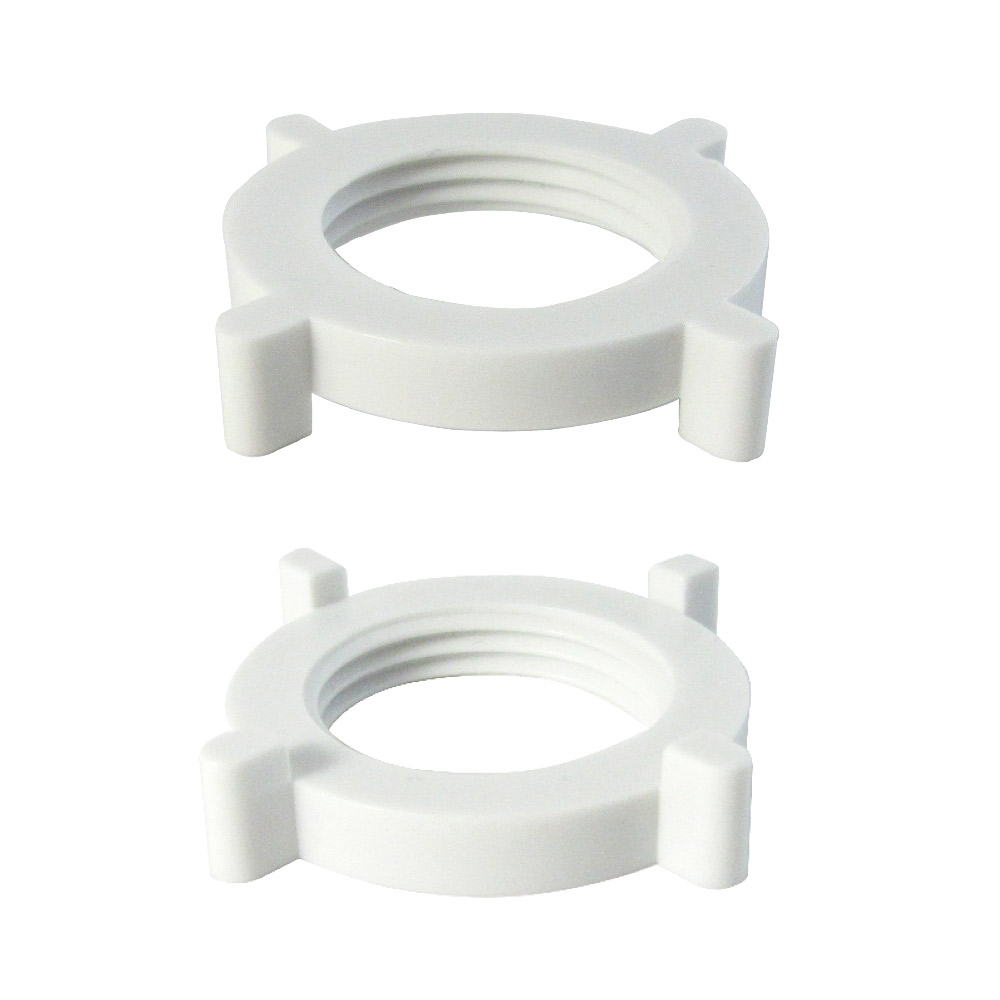

  • To install: twist backing nut to the back of the bolt LED light so that it locks that light in place


  • Boats
  • RVs
  • Cars
  • Railing

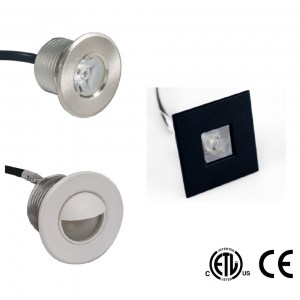

LED Bolt
RD12 LED Fixtures

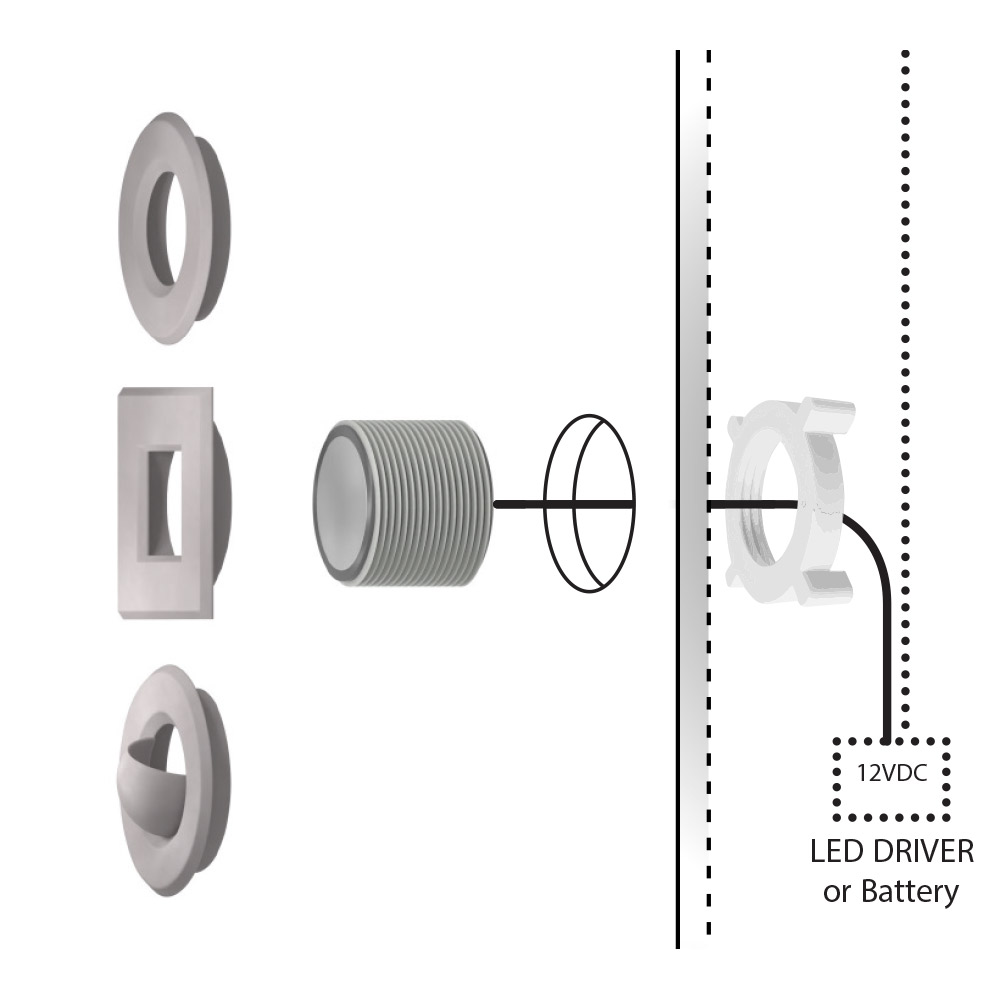

LED Bolt Installation
