Mini Scoop LED Step Light

Mini LED Step Light can be used for both indoor and outdoor applications. Available with Black, White or Brushed nickel trim options.

ALEDECO Global's Mini LED Step Light is a versatile LED fixture that can be used for step lighting, path lighting, or other outdoor or indoor lighting applications. It draws very little power and provides an excellent light output and color temperature.

Scoop trim directs light down.

Many trim options now, contact us.

Specifications Chart

Light Engine Code ALED-RD12-2
Trim Code ALED-RD12-SC (includes round trim & scoop piece)
Voltage 12V/24V DC or AC/DC
Wattage 0.5W
# of LEDs 2 x 2835 LEDs
Beam Degree 120°
Lumens 65
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / 6000K / Red / Green / Blue
Finish Options

Brushed Nickel, Black, White, Oil Rubbed Bronze, Dark Brown

Dimensions Ø11/16 x H7/8” (Ø27 x H25mm)
IP Rating IP67
Certifications RoHS Compliant, cETLus (UL &CSA recognized) CE


  • Fully sealed for outdoor use
  • Spring clips to allow simple pressure fit installation
  • 120° beam
  • PC Housing
  • Dimmable
  • +50,000 hour lifespan with
  • 3 years warranty

Full Sets Available with custom packaging (Options include LED Drivers, # of Puck LED Puck Lights, switches, plug, wire lengths)


  • Cabinet lighting
  • Display lighting
  • Step & Deck lighting

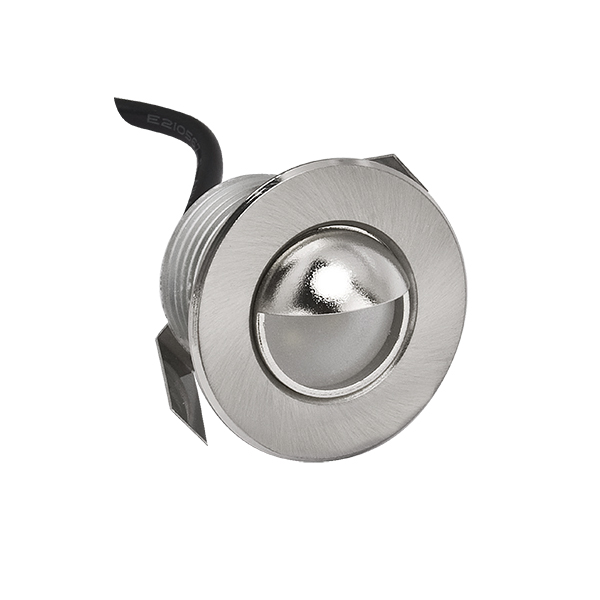

RD12 Brushed Nickel Scoop Trim

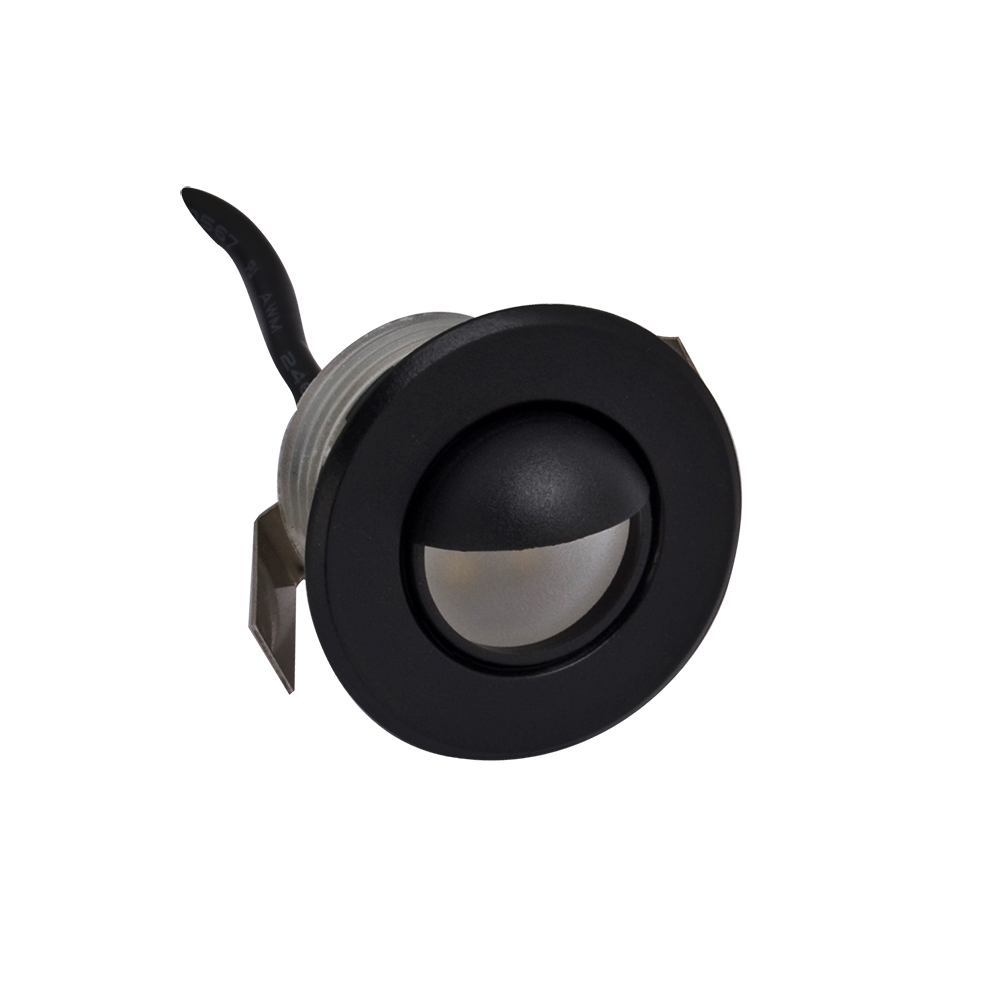

RD12 Black Scoop Trim

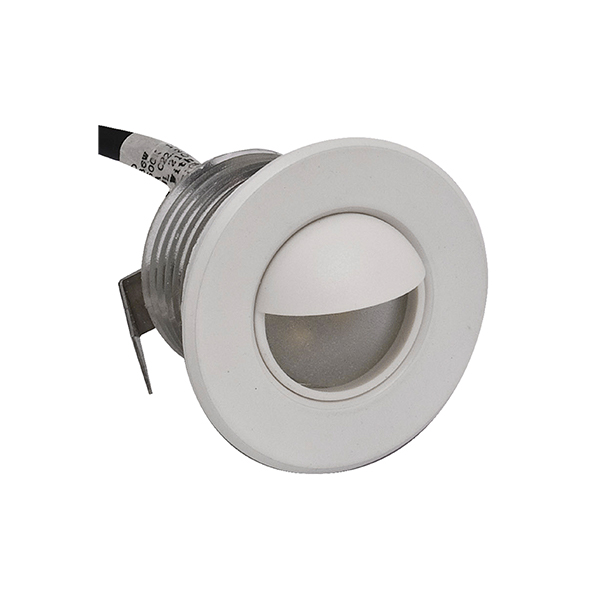

RD12 White Scoop Trim


Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.


Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering


Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
