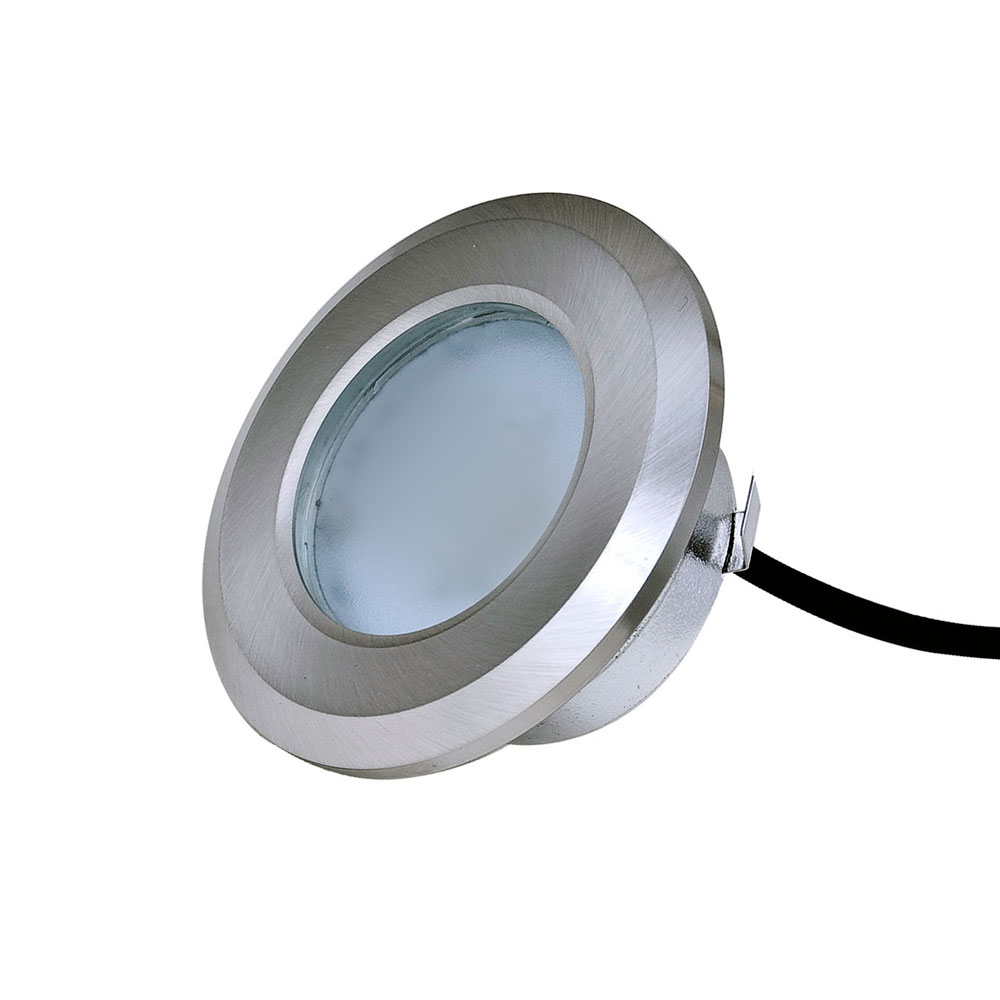

RD9 LED Inground Light

Print
1W Power LED for inground installation is fully sealed with a frosted tempered glass and metal housing. High-quality premium metal finish available in Brushed Nickel, Black or custom. Designed to be walked on with heavy-duty tempered thick glass, available with waterproof connector. 12V DC only draws 1W. Made for outdoor use (IP67).  Designed with help from an Italian Designer.

Can be Packaged in custom sets for Private Label Customers, waterproof connectors with Harness and UL or CE Listed LED Driver in Color Packaging if requested.
Description

Specifications Chart

Product Code ALED-RD9
Voltage 12V AC/DC (12V or 24V DC)
Wattage 1W or 3W
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / (RGB - 12V DC only)
# of LEDs 1 LED
Beam Degree 120°
Lumens 110

Features

  • Solid-state LED technology
  • Recessed installation
  • Designed to be walked on with heavy-duty tempered thick glass
  • Available with waterproof connector
  • -40°C to +85°C operating temperature
  • Dimmable
  • +50,000 hour lifespan
  • 3 Year Warranty

Applications

  • Step lighting
  • Deck lighting
  • Path lighting
  • Cabinet/ Wall Light Fixture

Product Details

Housing Metal
Diameter 2-3/4” (70mm)
Height 15/16" (23mm)
Cutout Size 2” (50 - 60mm)

Tech Details

IP Rating IP67
Location Damp
Certification RoHS Complaint, cETLus, CE

Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
