Commercial Grade LED Brick Light

Print
Suitable for stairs, path, and architectural applications, Aledeco Global's newest Brick Light is 100-277V AC, 5W with warm white, natural white and cool white color temperatures available.
Description

New LED Brick Light is line voltage (100-277V AC) with three trim styles and three finishes available. Die-cast zinc-aluminum housing with a gasket and zinc magnesium trim with powder coasted finish included.

Wet locations rated.

Specifications Chart

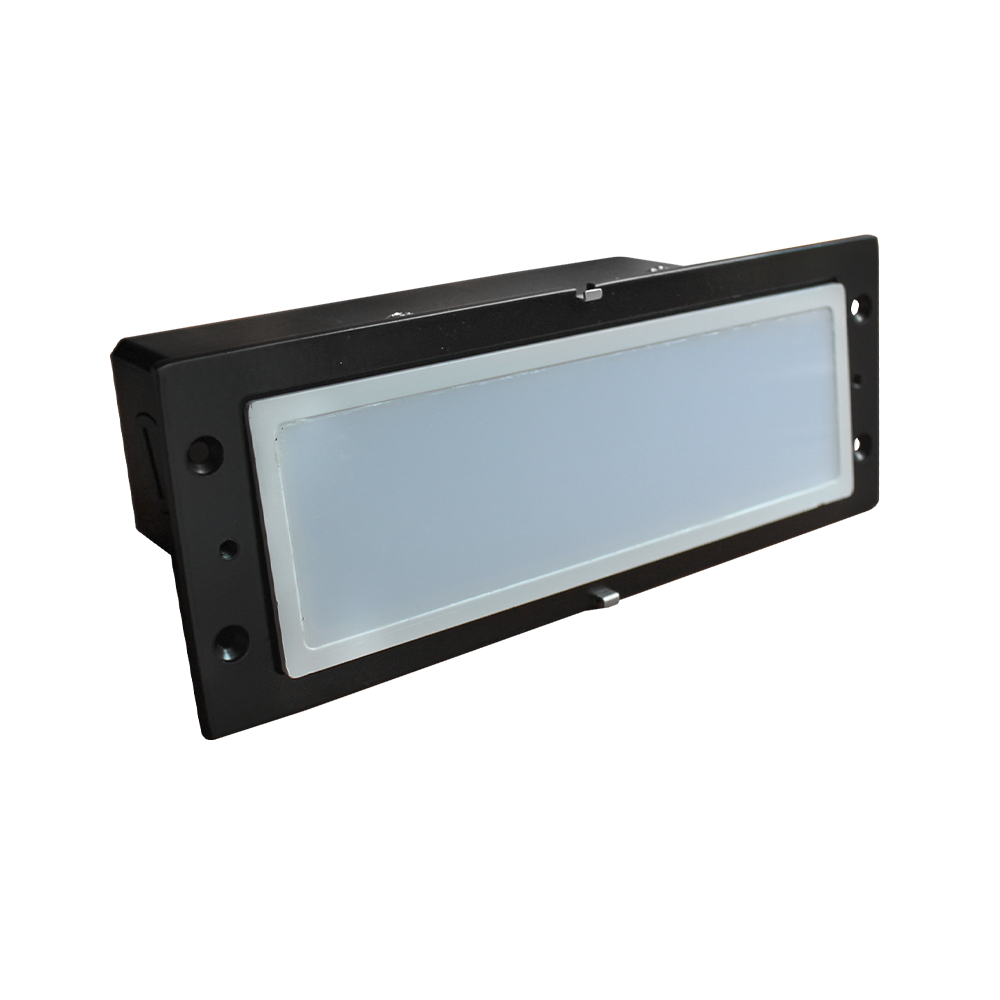

Product Code ALED-RT06HV-5W (For SH and RO trims)
ALED-RT06HV-5W-RH (For RH trims)

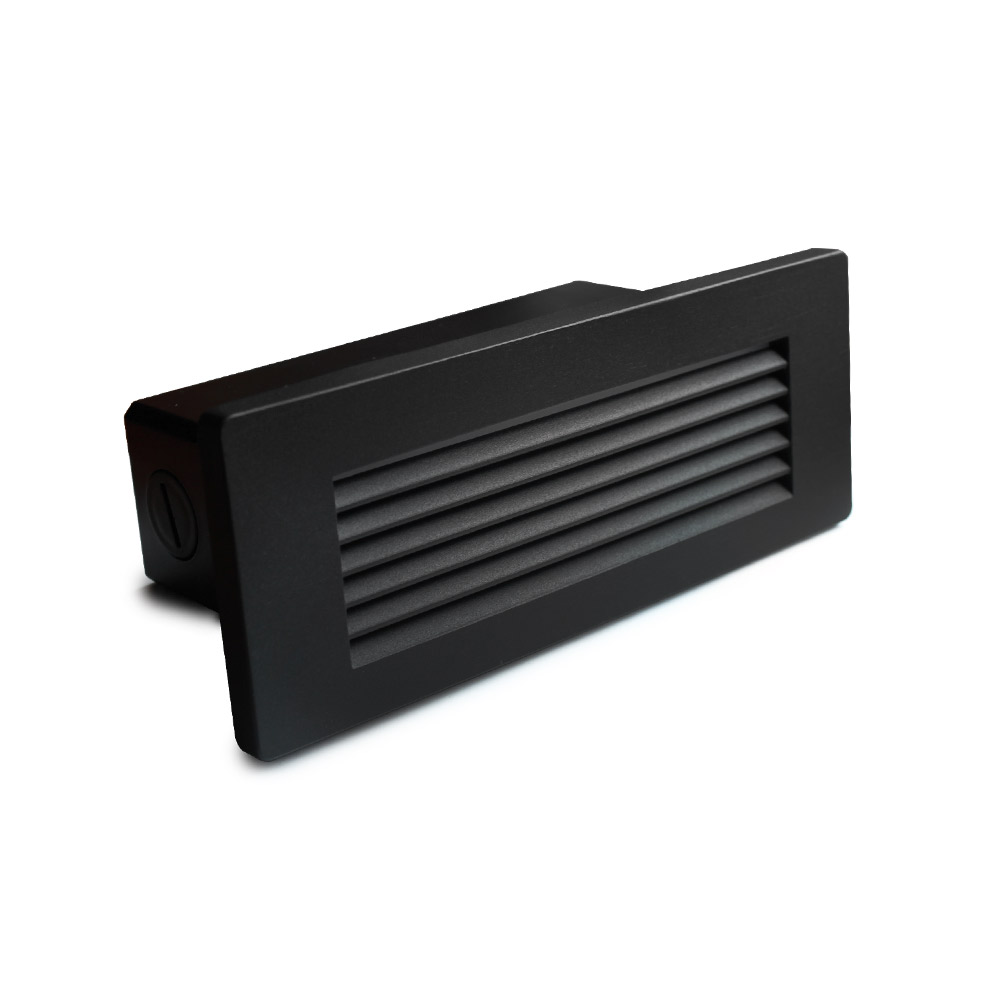

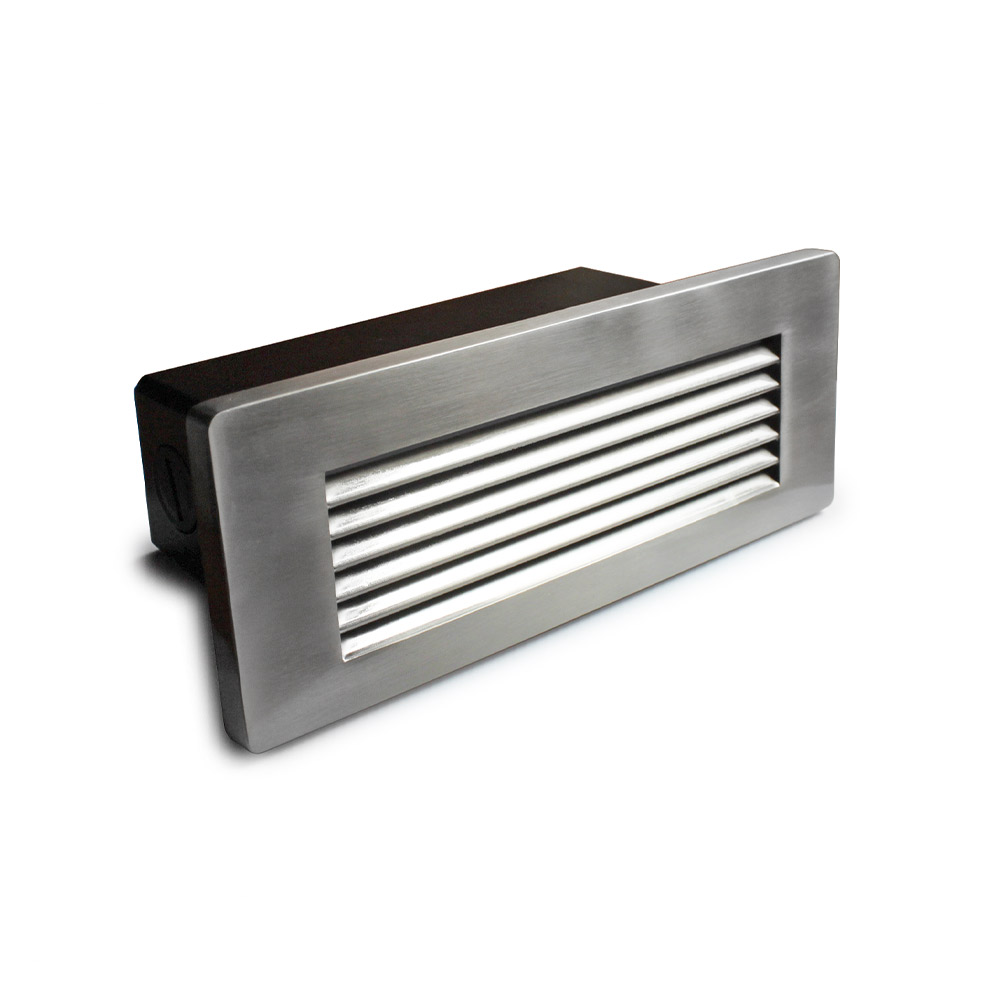

Trim Code ALED-RT06-SH (Screwless Louver)

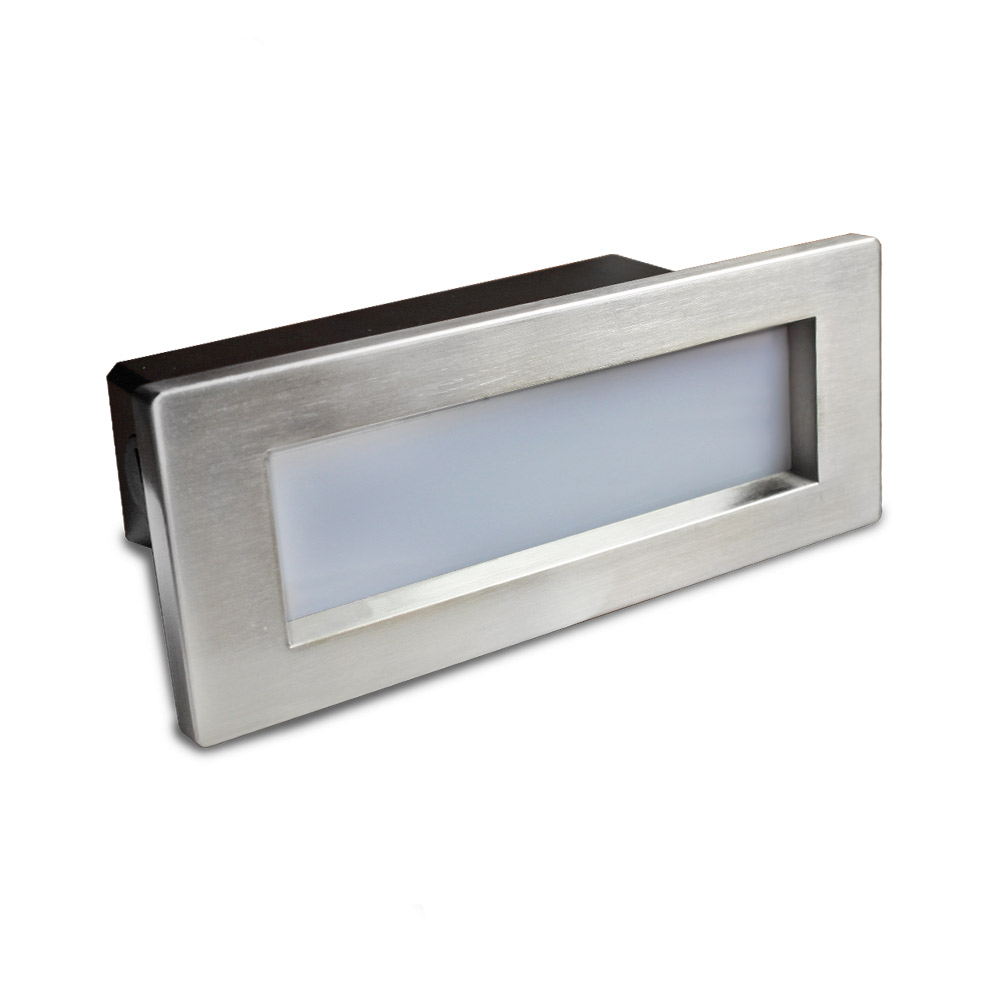

ALED-RT06-RO (Screwless Flat Open)

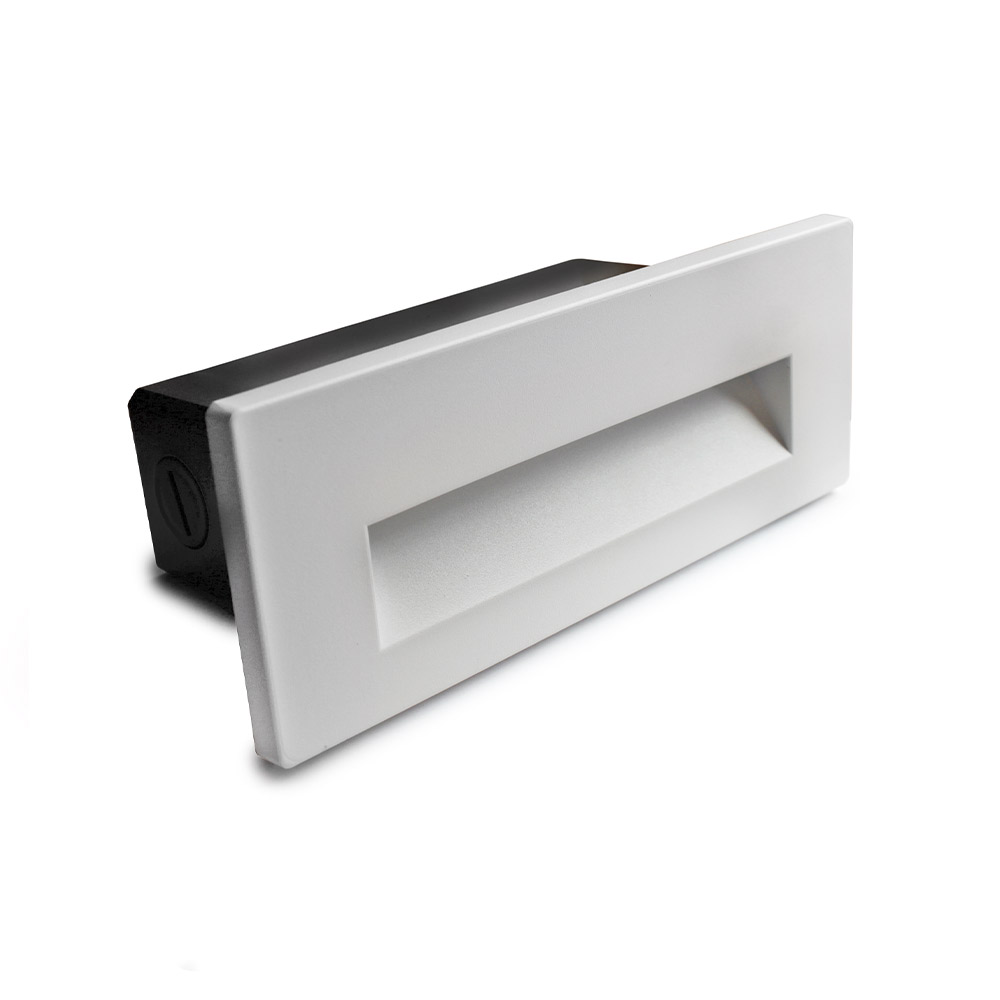

ALED-RT06-RH (Screwless Recessed)

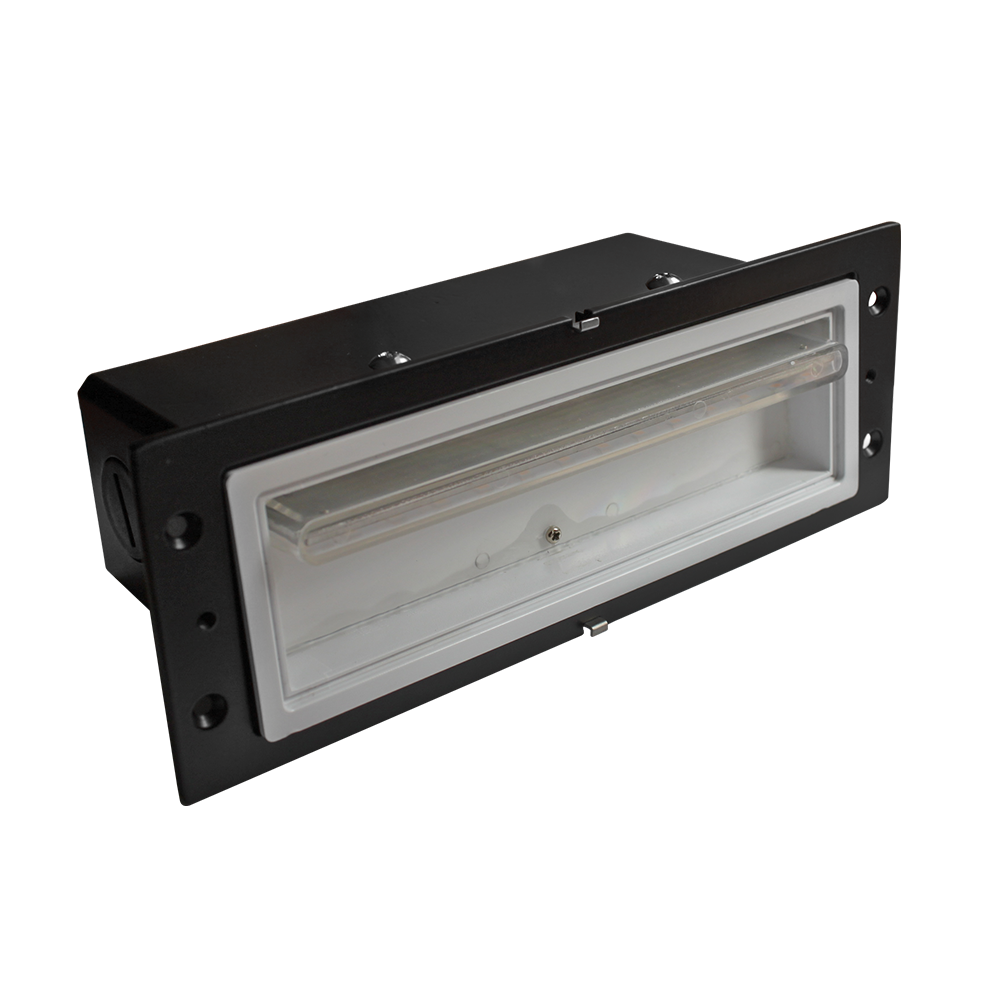

Housing Code ALED-RT06HV-HSG (Includes junction box & gasket)
Voltage 100-277V AC
Wattage 5W
Lumens 300
Color Temperature WW 2700K / 3000K / 3500K / 4000K / 4500K / 5000K / CW 6000K
Light Engine Dimensions L7.6 x W1.7 x H1.7” (L180 x W43 x H43mm)
Trim Dimensions L8.7 x W5.31 x H0.38” (L221 x W84 x H10mm)
Housing Dimensions L8.44 x W3.13 x H3.13” (L215 x W80 x H80mm)
Trim Options Screwless Louvered, Screwless Recessed, Screwless Open Window
Finish Options Brushed Nickel, Black, White, Dark Brown, Oil Rubbed Bronze
Certifications RoHS Compliant, cETLus, CE - wet location rated

Features

  • cETLus listed for indoor and outdoor wet applications
  • Recessed mount
  • Screwless zinc magnesium trim with powder-coated finish
  • Die-cast zinc aluminum housing
  • Includes housing, gasket, and trim
  • +50,000 hour lifespan
  • 3 years warranty

Applications

  • Architectural
  • Step lighting
  • Path lighting
  • Wall lighting
