Warm White to CCT LED Light Bar

Print

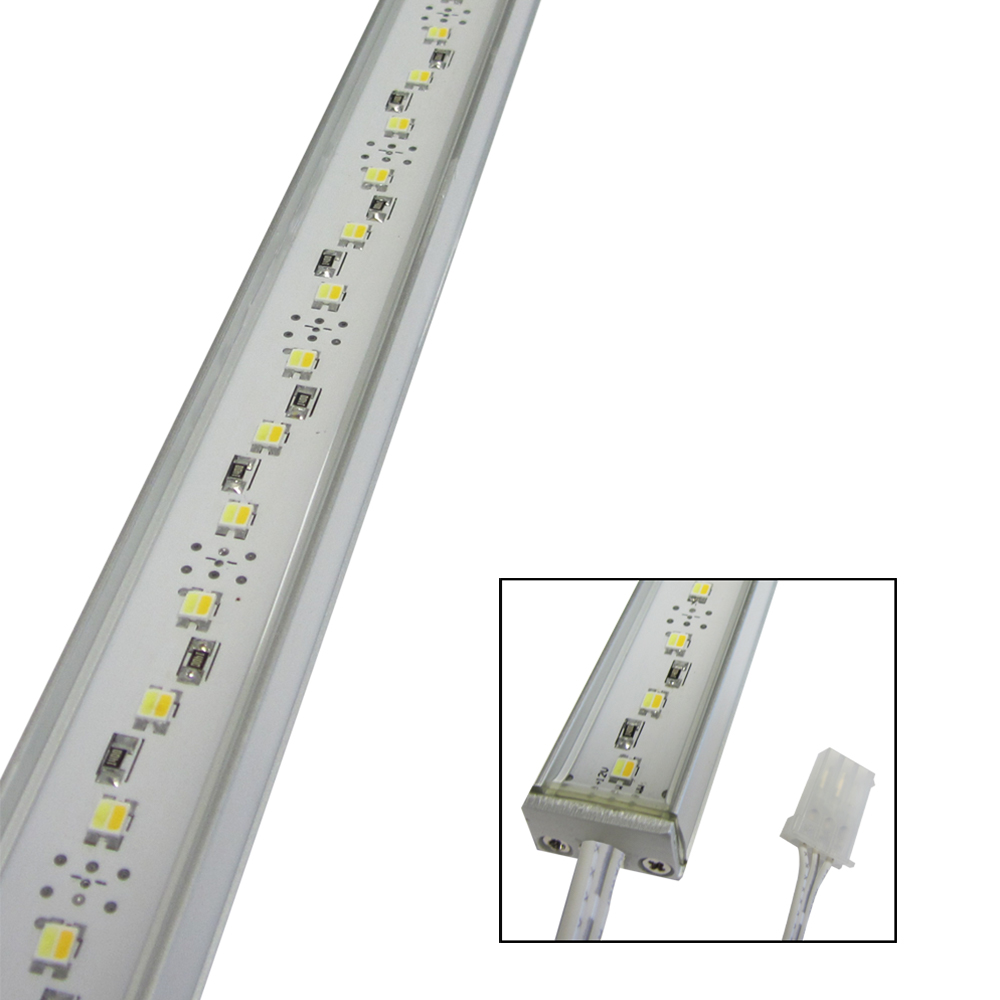

Can be used for under cabinet or back bar displays. The linear light features rigid aluminum housing, super bright SMD dual color LEDs, excellent color temperature and heat dissipation allow for long lifespan. Change from warm to white color with the touch of a button.
Description

ALEDECO Global's CCT Linear LED Light Bar CCT (correlated color temperature) Linear Light Bar works well for under cabinet, display and back bar applications. Our CCT LED light bar offers a low heat, high brightness alternative to LED puck lights, it is simple to install and can last upwards of +50,000  hours. It comes standard with both white and warm white LED chips so you can easily switch back and forth to create the ultimate ambiance.

Specifications Chart

Product Code ALED-LL2-CCT-.5M ALED-LL2-CCT-1M
Voltage 12V DC 12V DC
Wattage 6W 12W
# of LEDs 42 84
Lumens 270 540
Beam Degree 120° 120°
Color Temperature WW to CW  WW to CW
Dimensions L500 x W17 x H9mm  L1000 x W17 x H9mm
Housing Aluminum  Aluminum
Certifications CE  CE

Features

  • SMD LED Chip Technology
  • Simple installation - includes mounting clips
  • Easily connect together for larger applications
  • Sleek profile, aluminum housing
  • Low heat output - reduces fire hazard
  • Energy efficient - lifespan +50,000 hours
  • Color changing functionality for the ultimate custom lighting solution

Applications

  • Task lighting
  • Under cabinet light
  • Display lighting
  • Back bar displays
