RD10 COB LED Cabinet Light

Print
LED Cabinet Light available in 2W or 4W, uses a bright COB LED, illuminating over 300 lumens. This fixture can be recessed or surface mounted.

Can be made in custom sets with UL or CE Listed LED Driver. 2.25" cutout or 60mm. High Quality Powder Coat Finish.
Description

ALEDECO Global's newest, brightest 4W LED puck light for surface or recess install, now also available in 2W.

Made in metal (for good heat management) with a frosted glass housing and includes a surface mount and a powder-coated very beautiful trim in Brushed Nickel, Black, White or Custom (custom color available can be requested). Scoop option available.

The cutout is 2.25" (60mm recessed hole).

It can be made into sets or custom wire harness. Can be Packaged in custom sets for Private Label and OEM, ODM Customers.

 Specifications Chart

Product Code ALED-RD10-4W ALED-RD10-2W
Voltage 4W 2W
Wattage 12V or 24V DC
Lumens 320
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB (4 wire)
Cutout Dimensions 21/4" (57mm)
Trim Dimensions 23/4" (70mm)
Finish Options Brushed Nickel, Black, White or Custom
IP Rating 67
Certifications cETLus listed

Features

  • Solid-state LED technology

  • Recessed or surface mount installation

  • All trims available in all styles and colors: Black, White, and Brushed Nickel

  • COB LED light engine

  • Wet location rated

  • 3-year warranty with +50,000 hour lifespan

  • cETLus listed

Applications

  • Cabinet lighting

  • Furniture lighting

  • Deck lighting

Ask a question about this product

Downloads

Download Spec Sheet

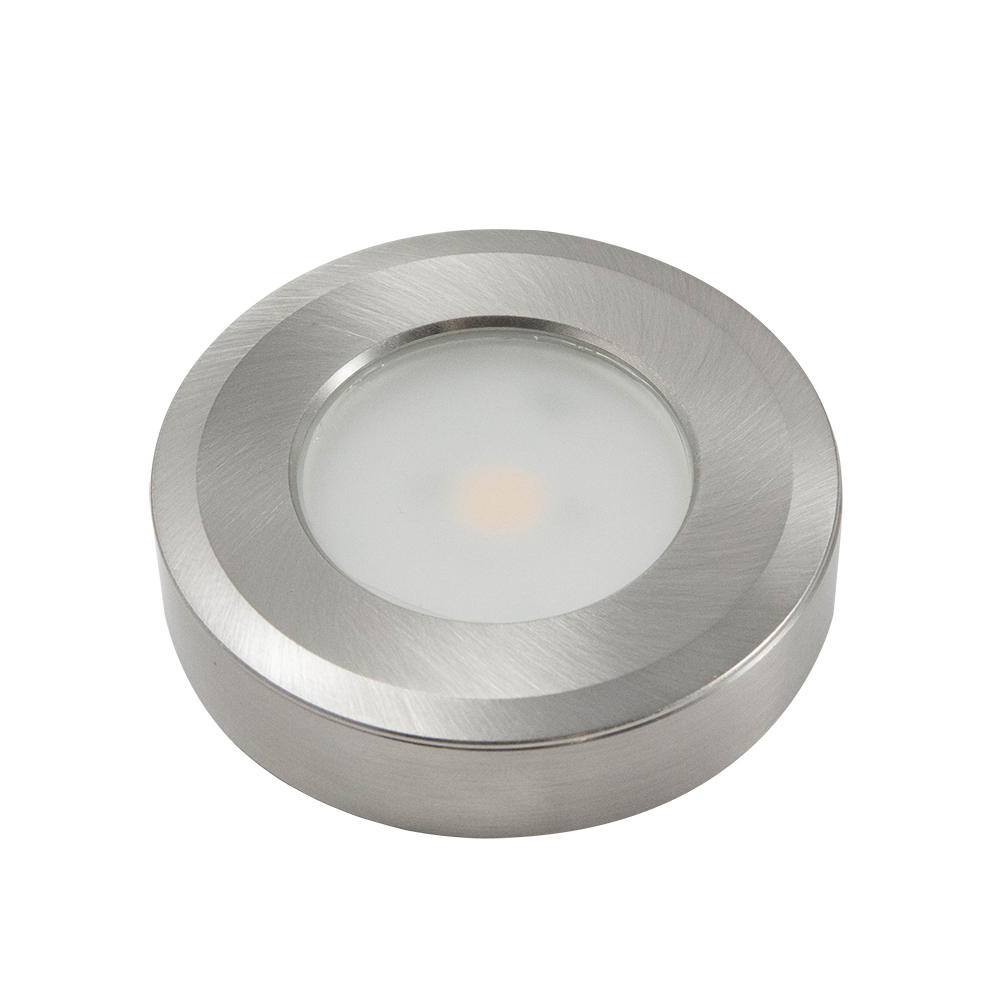

Surface Mount Brushed Nickel RD10

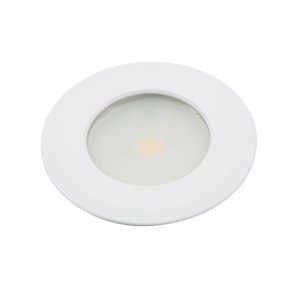

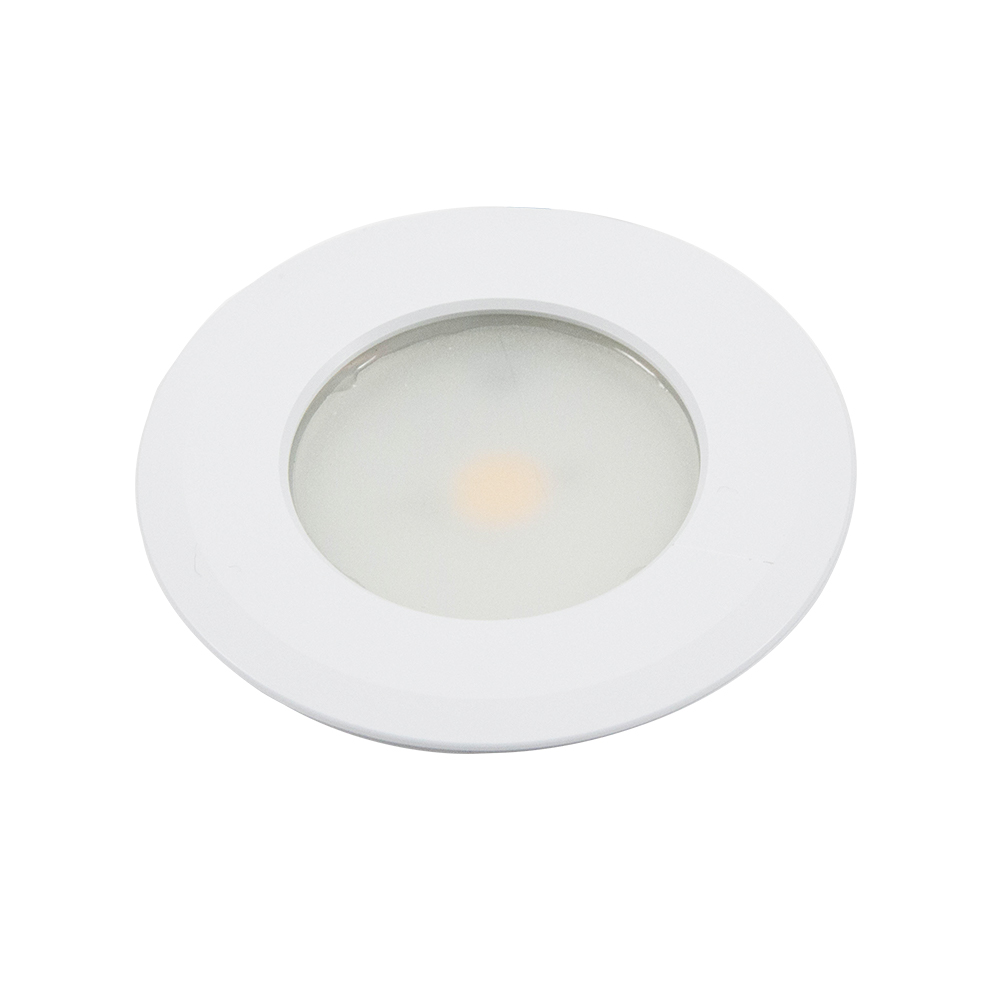

Recessed White RD10

Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
