Mini LED Light with Honeycomb trim

Print

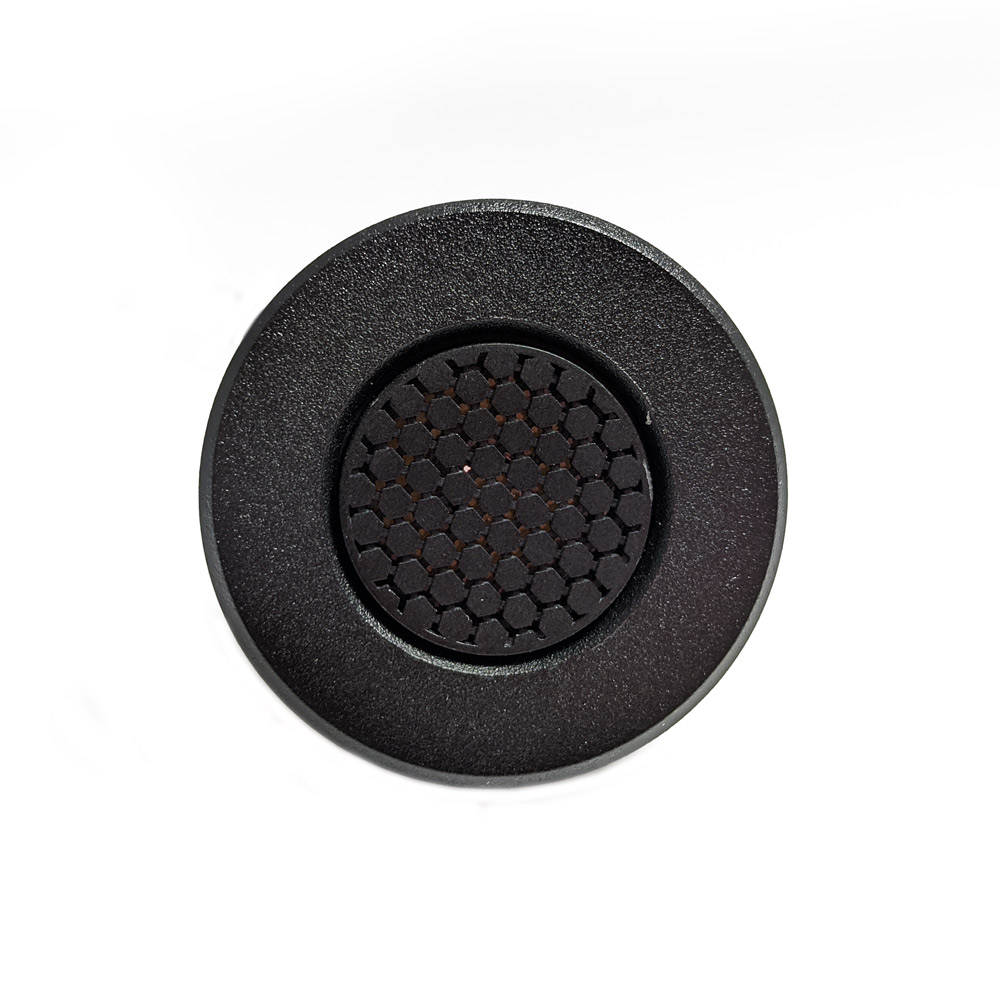

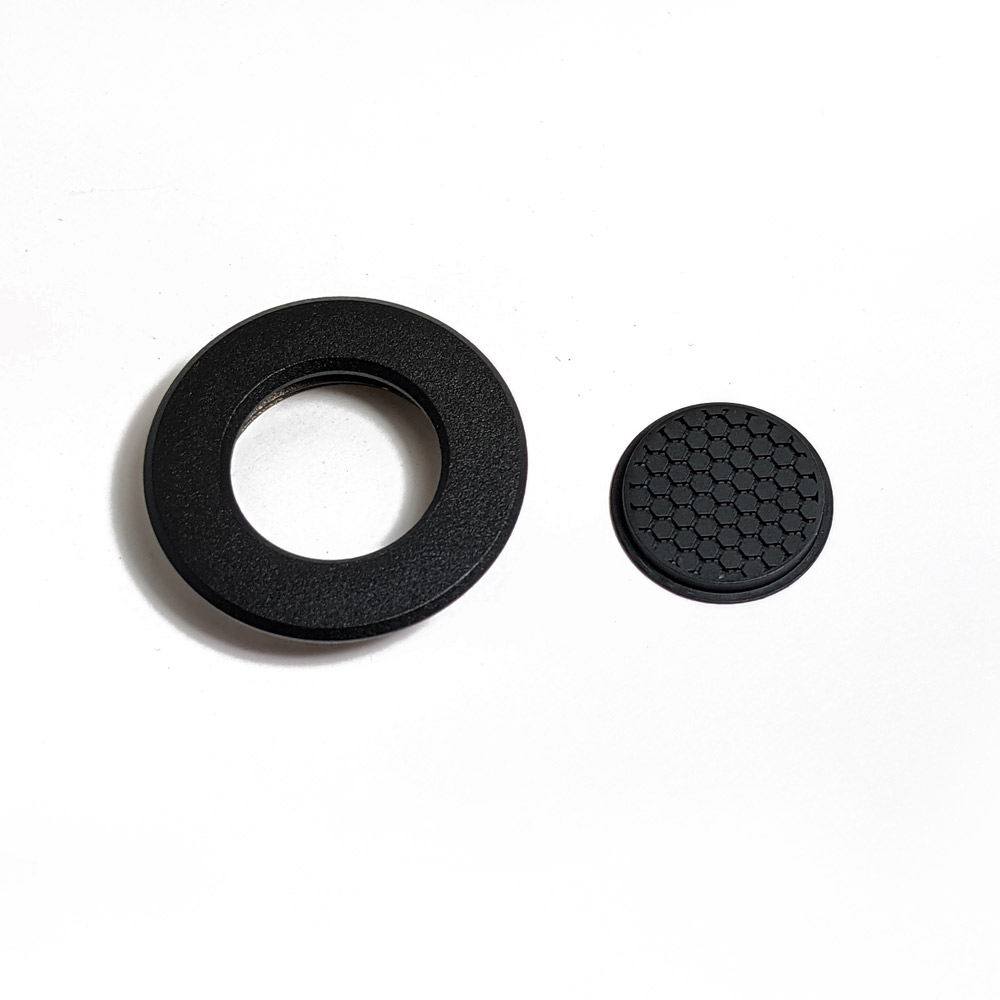

Newest 40mm PC trim in our RD12 series shades light from your eyes with its honeycomb design. The set includes round trim and honeycomb piece. Available in five different finishes.
Description

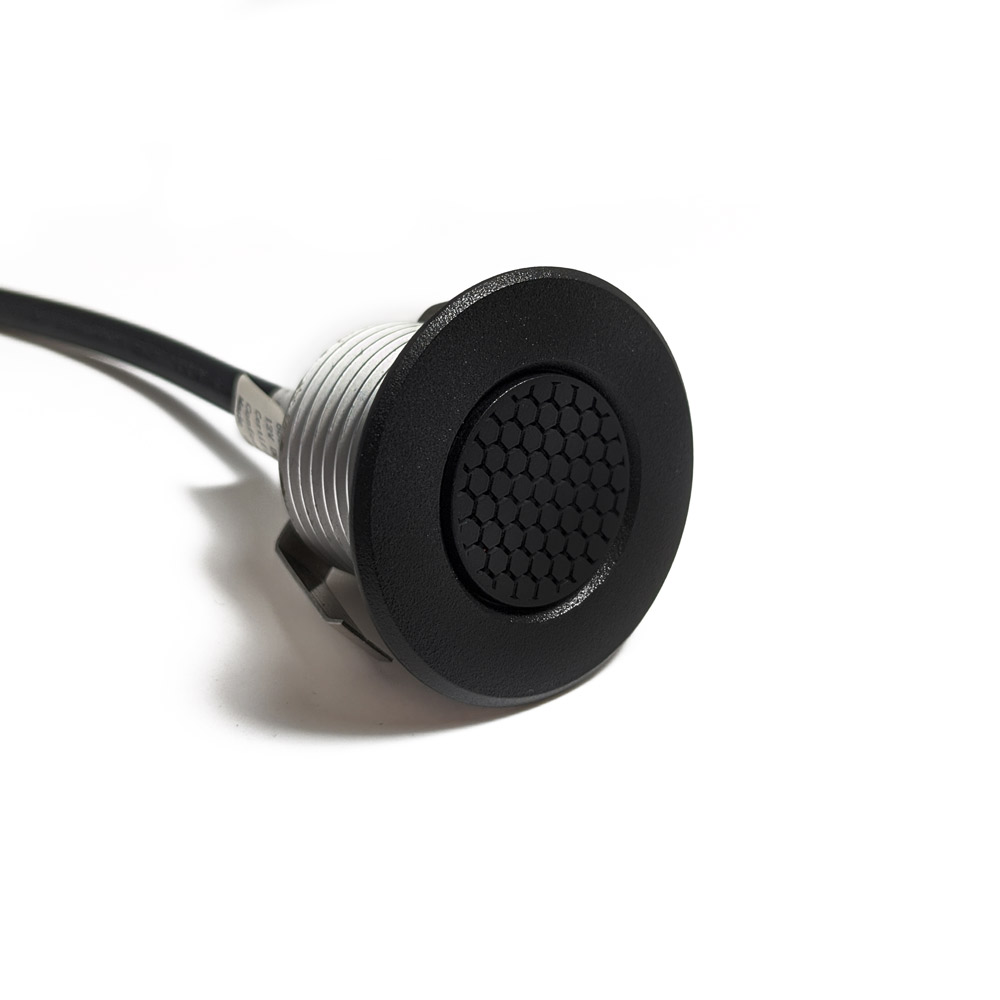

ALEDECO Global features a new Honeycomb trim for the RD12 Mini LED Light series. Pair this high-quality trim with any RD12 light engine for a customized look suitable for any indoor or outdoor applications (IP67).

The Mini LED Light offers high powered light output for its size with your choice of single color CCT. Light engines and trims are sold separately.

Can be packaged in custom sets for Private Label and OEM Customers.


Specifications Chart for Light Engines

Product Code ALED-RD12-6
ALED-RD12-2 ALED-RD12-1W ALED-RD12-2W
Voltage 12 or 24V DC 12 or 24V DC 12 or 24V DC 12 or 24V DC
Wattage 0.4W (6 x 5mm LED) 0.5W (2 x 2835 SMD) 1W (1 x Power LED) 2W (1 x Power LED)
Lumens 55 65 90 160
Color Temperature 27K / 3K / 4K / 5K / 6K / Red / Green / Blue 27K / 3K / 4K / 5K / 6K / Red / Green / Blue 27K / 3K / 4K / 5K / 6K / Red / Green / Blue / RGB 27K / 3K / 4K / 5K / 6K / Red / Green / Blue
Beam Degree 90° 120° 45° 45°
IP Rating IP67 IP67 IP67 IP67
Certifications cETLus cETLus cETLus cETLus, Energy Star

Features

  • Spring clips to allow simple pressure fit installation
  • Fully sealed for outdoor use
  • Great for indoor or outdoor
  • Replaces 10W Incandescent
  • Low stock cost inventory with light engine and trim separate

Applications

  • Step lighting
  • Path lighting
  • Wall lighting
  • Cabinet lighting
No image set
No image set
No image set
