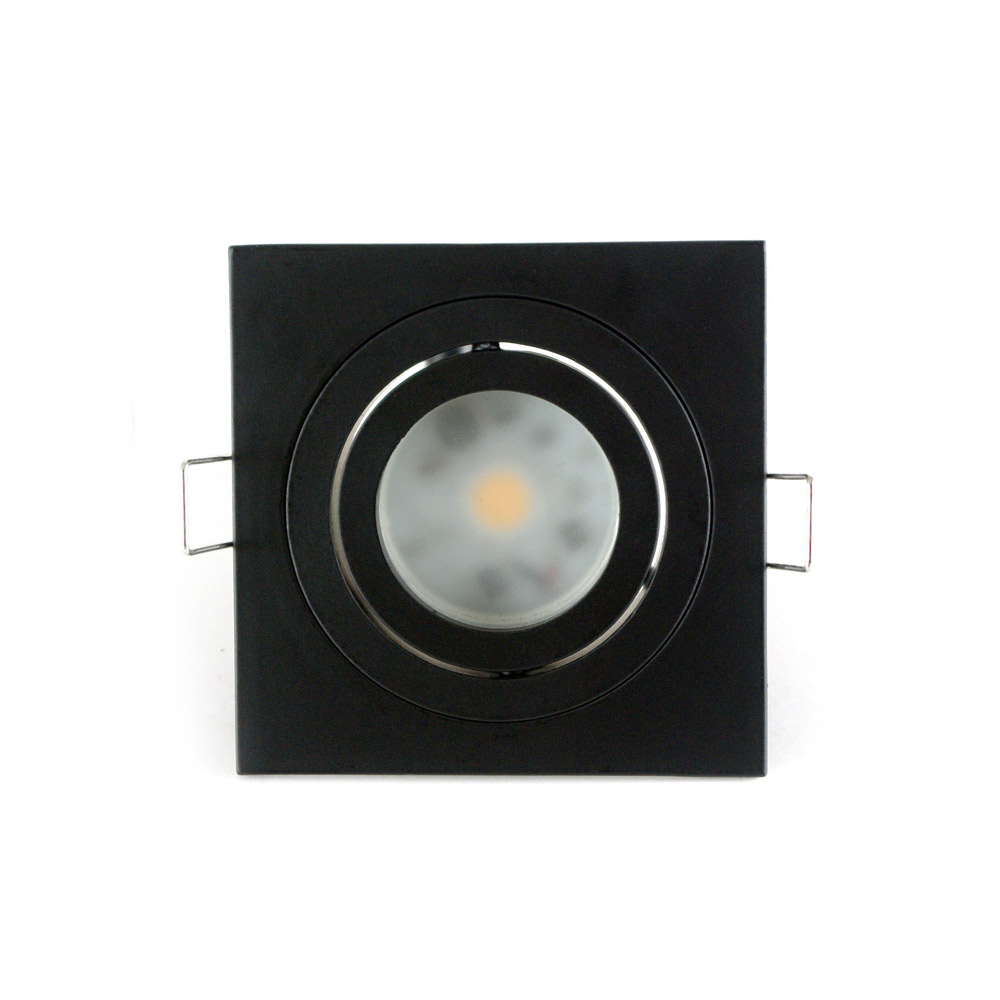

SQ11 Square Swivel LED Light

Square swivel light uses a bright 4W COB LED light engine and 12V or 24V DC voltage input. The fixture can be recessed or surface mounted with a 2.75" (70mm) recessed cutout.

ALEDECO Global's SQ11 Swivel LED Light for surface or recess install. Made in metal with a frosted glass housing.

Includes a surface mount and high-quality powder coat finish, die-cast metal for the trim available in Brushed Nickel, Black, or White. Can be made in custom sets with UL or CE Listed LED Driver.

Can be packaged in custom sets for Private Label and OEM, ODM Customers.

Specifications Chart

Product Code ALED-SQ11-4W
Voltage 12V or 24V DC
Wattage 4W
# of LEDs 1 COB LEDs
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB / RGBW
Lumen 320
Beam Degree 120°
Hole Cutout Ø 23/4" (70mm)
Dimensions Ø37/16 x 13/16"  (Ø87 x H21.5 mm)
Trim Color Brushed Nickel, Black, White, Chrome
Trim Material  Brushed or painted die-cast metal


  • Fully sealed for indoor/outdoor use
  • COB LED gimbal light
  • Simple recessed installation
  • Brushed or painted die-cast metal housing


  • Downlight
  • Gimbal
  • Display lighting
  • Cabinet lighting
  • Soffit lighting
Surface Mount RD10
