RD05 LED Step Light

Fits into standard round North American junction box. Trims styles are available as Window or Louvered and can be finished in Brushed Nickel, Black, White, Dark Bronze, or Chrome. Wet location rated, also indoor with cETLus for Canada and USA.

ALEDECO Global's ETL Listed RD05 LED Step Light fits standard round North American junction box. Wet Location rated.  Dimmable.

Trims available in all styles and colors.

Includes: LED light engine, outdoor gasket, and trim.

Specifications Chart

Product Code ALED-RD05HV (High Voltage)
ALED-RD05LV (Low Voltage)
Trim Code ALED-RD05-TR-W (Window)
ALED-RD05-TR-L (Louvered)
Voltage 100-240V AC or 12V AC/DC
Wattage 2.5W
Lumens 175
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB (12V DC)
Dimensions Fits standard round junction box
Light Engine Dimensions Ø3.44 x H2.13" (Ø60 x H87mm)

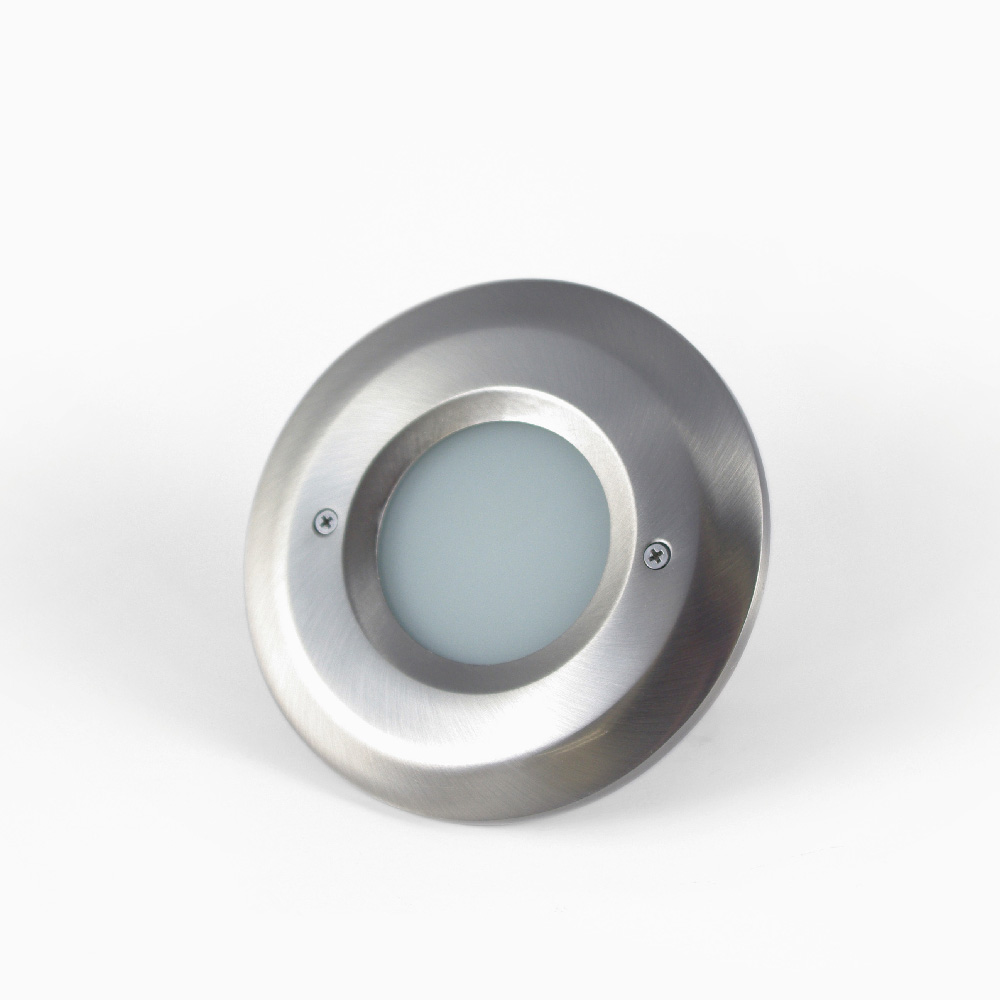

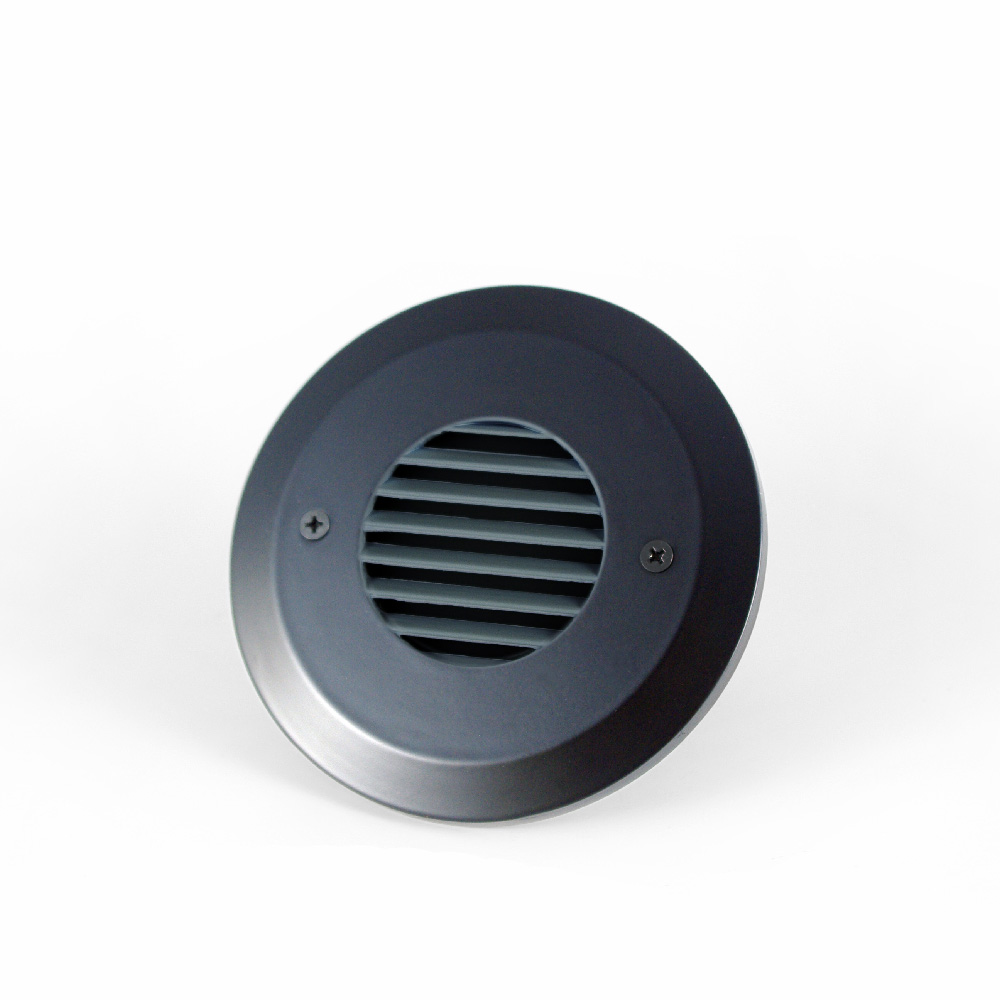

Trim Options Window & Louvered
Trim Dimensions Ø4.76 x 0.35" (Ø121 x H9mm)
Finish Options Brushed Nickel, Black, White, Dark Brown, Chrome
Certifications RoHS Compliant, cETLus, CE - wet location rated


  • For indoor and outdoor applications
  • cETLus listed for indoor and outdoor wet applications
  • Fits standard octagon/round junction boxes
  • Simple to install
  • High-quality components
  • We can package trim and light engine separate or together
  • Dimmable
  • +50,000 hour lifespan
  • 3 years warranty


  • Step lighting
  • Path lighting
  • Deck lighting


Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.


Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering


Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
