Mini LED Light with Louver trim

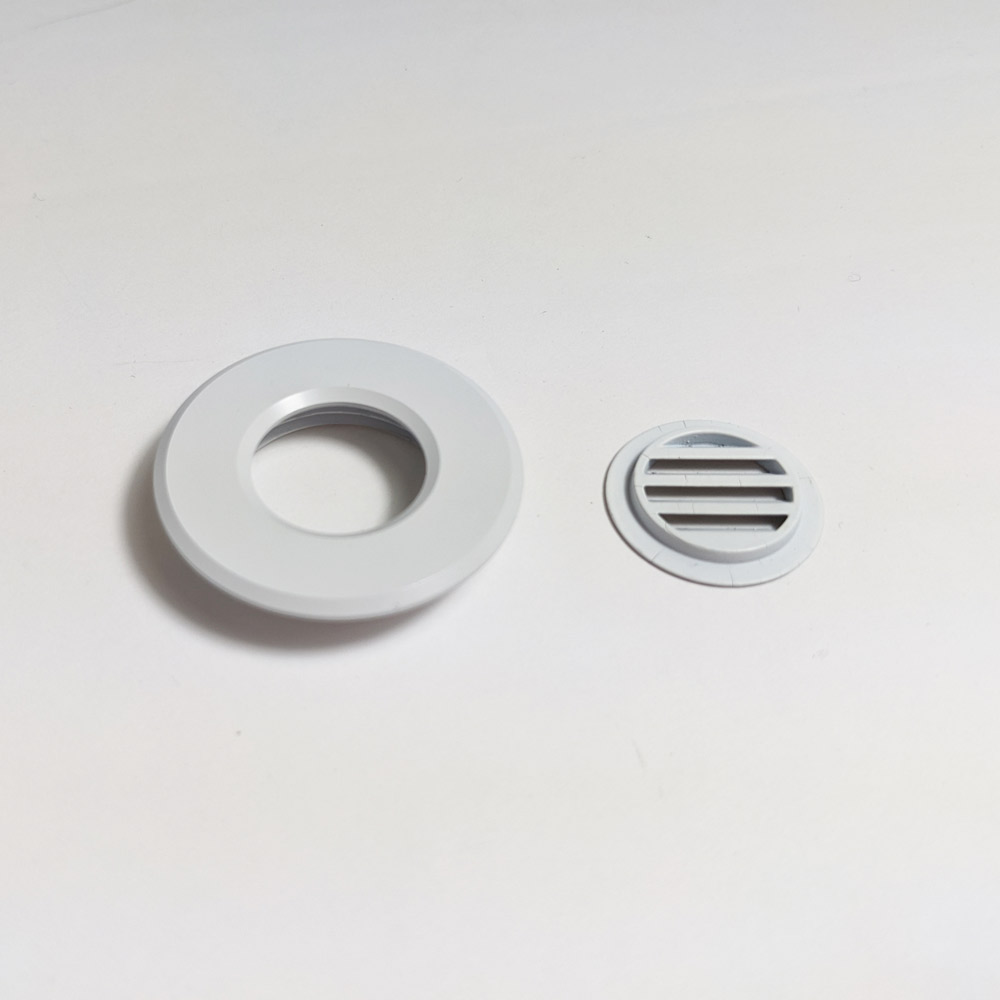

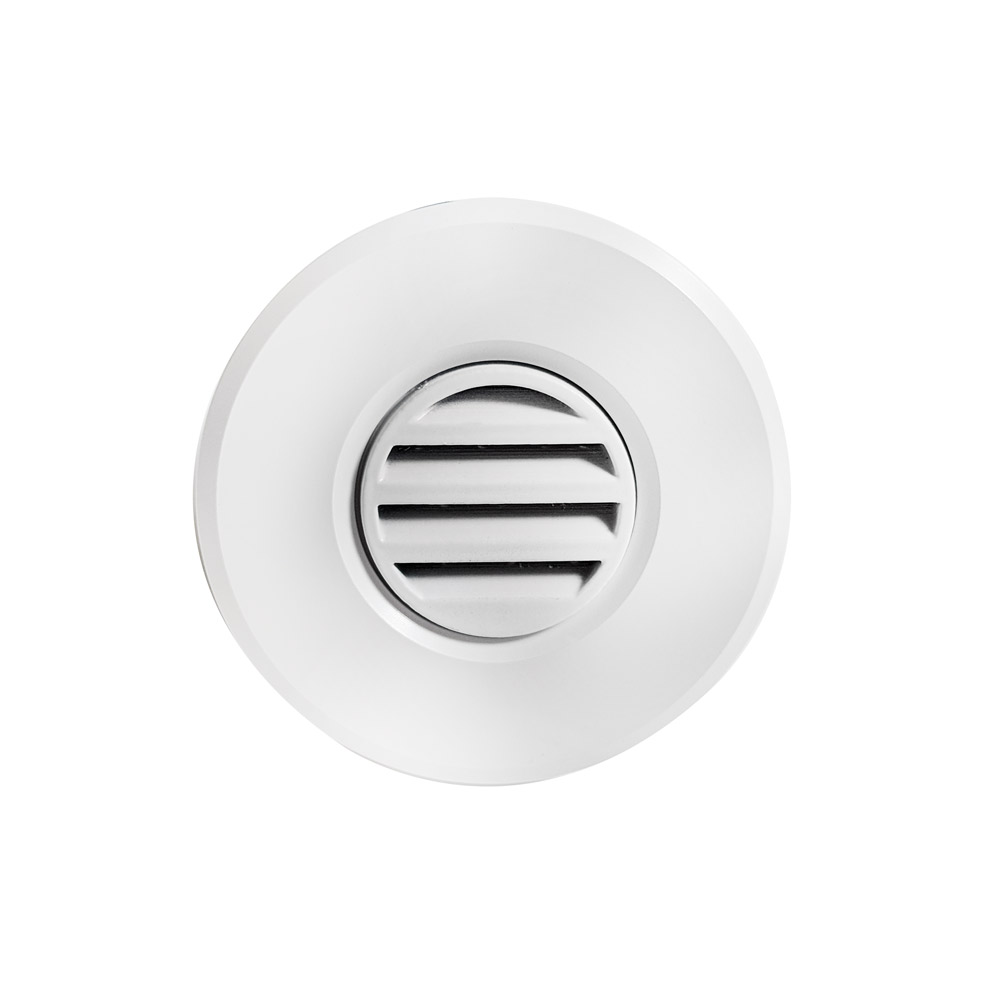

Newest 40mm PC trim in our RD12 series directs light down with its louver design. The set includes round trim and louver piece. Available in five different finishes.

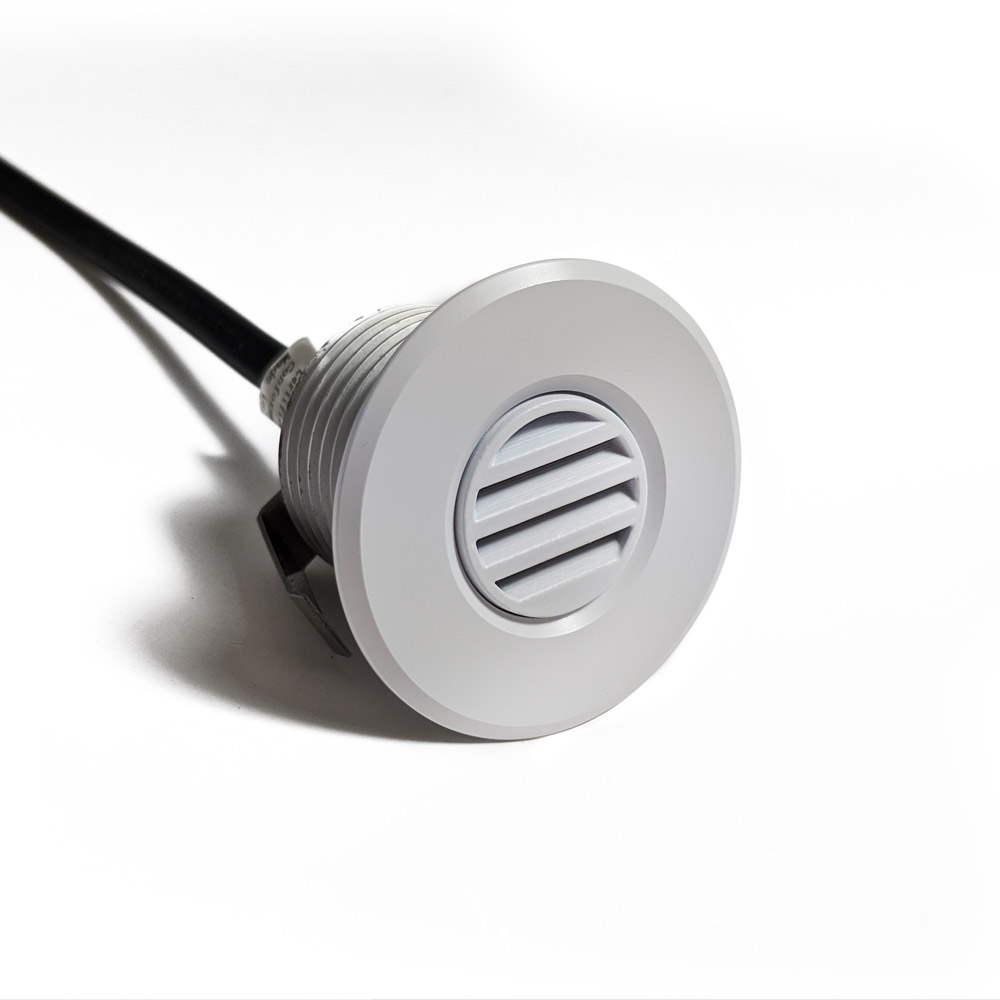

ALEDECO Global features a new Louver trim for the RD12 Mini LED Light series. Pair this high-quality trim with any RD12 light engine for a customized look suitable for any indoor or outdoor applications (IP67).

The Mini LED Light offers high powered light output for its size with your choice of single color CCT. Light engines and trims are sold separately.

Can be packaged in custom sets for Private Label and OEM Customers.

Specifications Chart for Light Engines

Light Engine Code

ALED-RD12-6 (0.4W)
ALED-RD12-2 (0.5W)
ALED-RD12-1W (1W)
ALED-RD12-2W (2W)

Voltage 12V/24V DC or AC/DC

0.4W (6 x 5mm LED)
0.5W (2 x 2835 SMD)
1W (1 x Power LED)
2W (1 x Power LED)

Lumens 55 (0.4W)
65 (0.5W)
90 (1W)
160 (2W)
Color Temperature 27K / 3K / 4K / 5K / 6K / Red / Green / Blue
Beam Degree

90° (0.4W)
120° (0.5W)
45° (1W & 2W)


  • Spring clips to allow simple pressure fit installation
  • Fully sealed for outdoor use
  • Great for indoor or outdoor
  • Replaces 10W Incandescent
  • Low stock cost inventory with a light engine and trim separate


  • Step lighting
  • Path lighting
  • Wall lighting
No image set
No image set
No image set


Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.


Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering


Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
