RT10 Large LED Step Light

Fits into a standard triple gang electrical box from Canada and USA. Wet location ETL Listed for 100 - 240V AC or 12V AC/DC. Two face trim options available: Window and Louvered. Available in custom light color or trim finishes.

ALEDECO Global's RT10 Large LED Step item you can stock the light engine with gasket separate, and then trim finishes separate and have many options for customers and manage inventory better.

ETL Listed for Wet Locations.

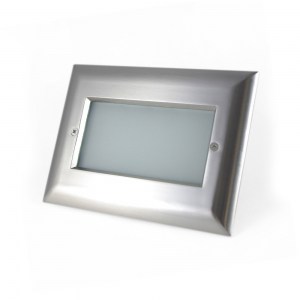

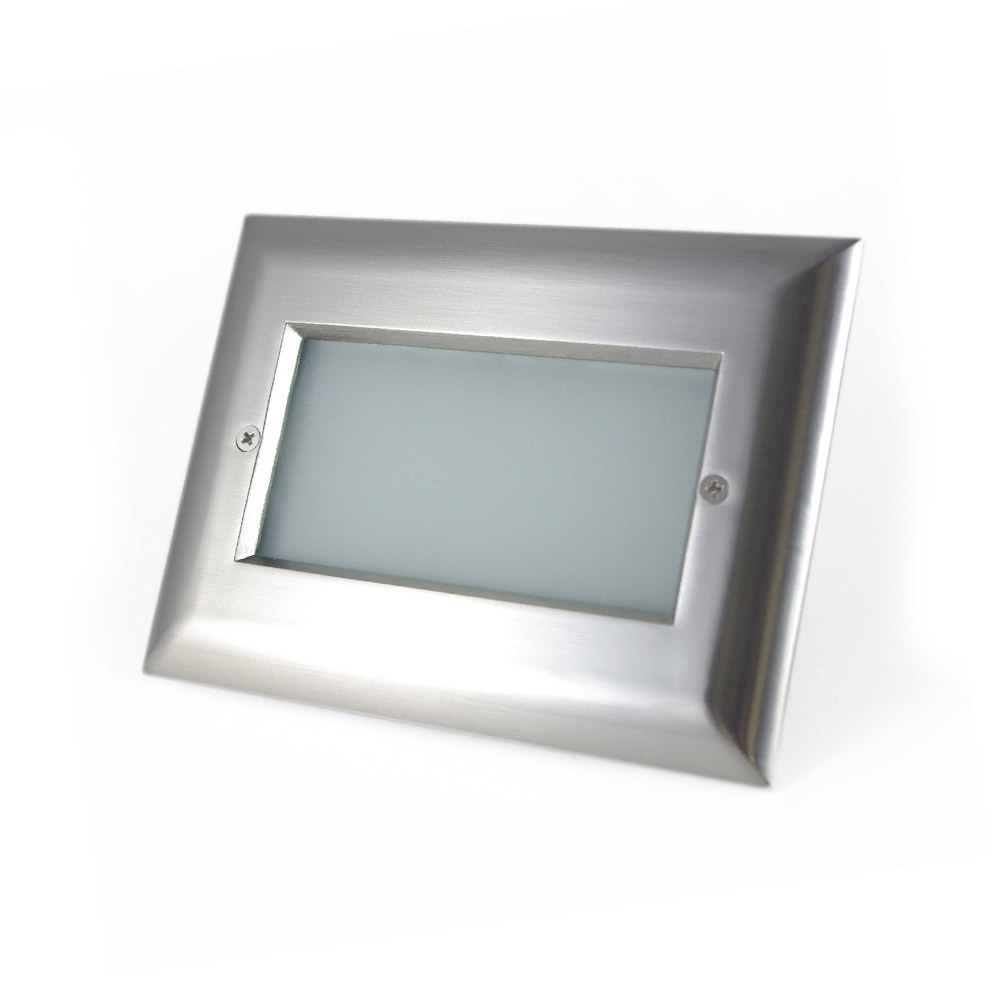

Trim Styles available: Louver and Window.

Specifications Chart

Product Code ALED-RT10HV (High Voltage)
ALED-RT10LV (Low Voltage)
Trim Codes ALED-RT10-TR-W (Window)
ALED-RT10-TR-L (Louvered)
Voltage 100 - 240V AC or 12V AC/DC or 24V DC
Wattage 3.2W
Lumens 224
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / (RGB - 12V/24V DC)
Dimensions Fits standard triple gang junction box
Trim Options Window & Louvered
Finish Options Brushed Nickel, Black, White, Dark Brown, Chrome, Custom
Certifications RoHS Compliant, cETLus, CE - wet location rated


  • cETLus listed for indoor and outdoor wet applications
  • Fits standard triple gang junction boxes
  • Simple to install
  • High-quality components
  • We can package trim and light engine separate or together
  • Dimmable
  • +50,000 hour lifespan
  • 3 years warranty


  • Step lights
  • Path lights
  • Deck lights

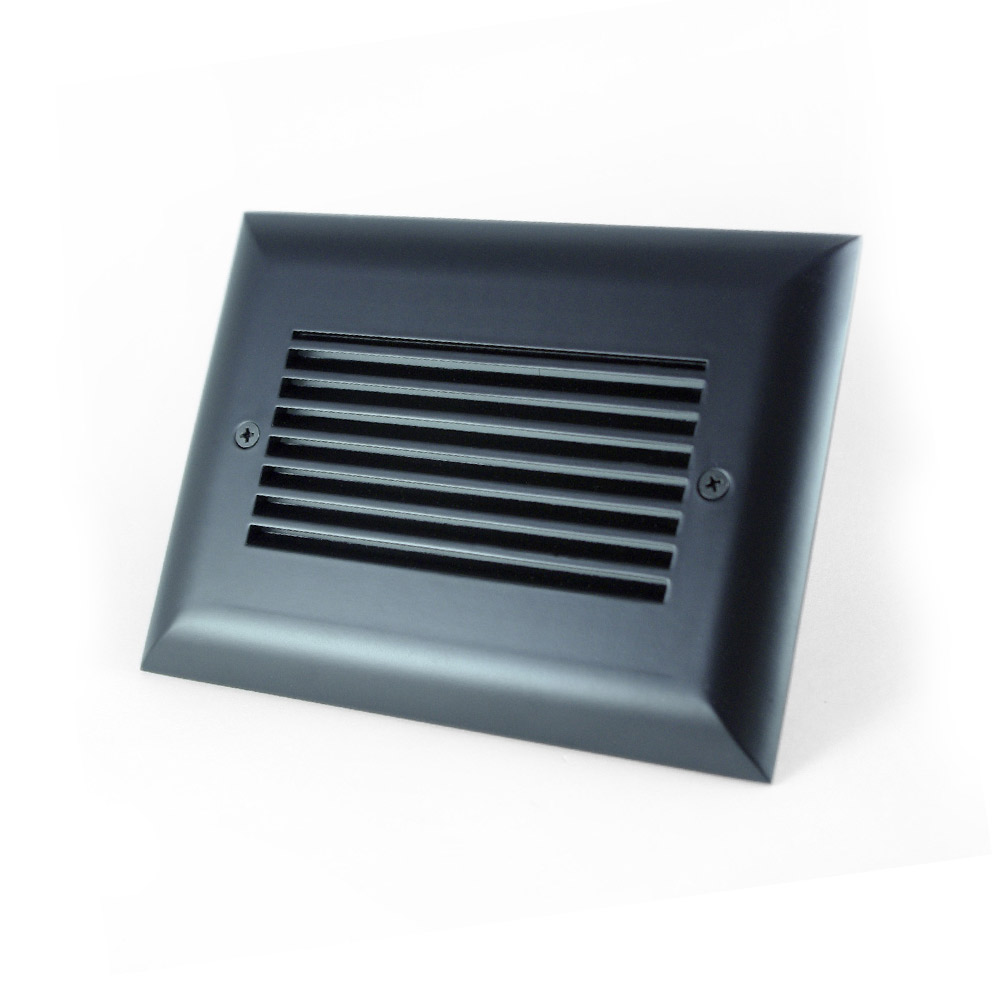

No image set Louvered Black Trim
No image set


Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.


Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering


Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
