3” Round LED Downlight

Print
New sleek high voltage 3" downlight includes an adjustable beam angle from 20° to 40°. Flat round dimmable with four color temperatures to choose from. IC & Damp location rated.
Description

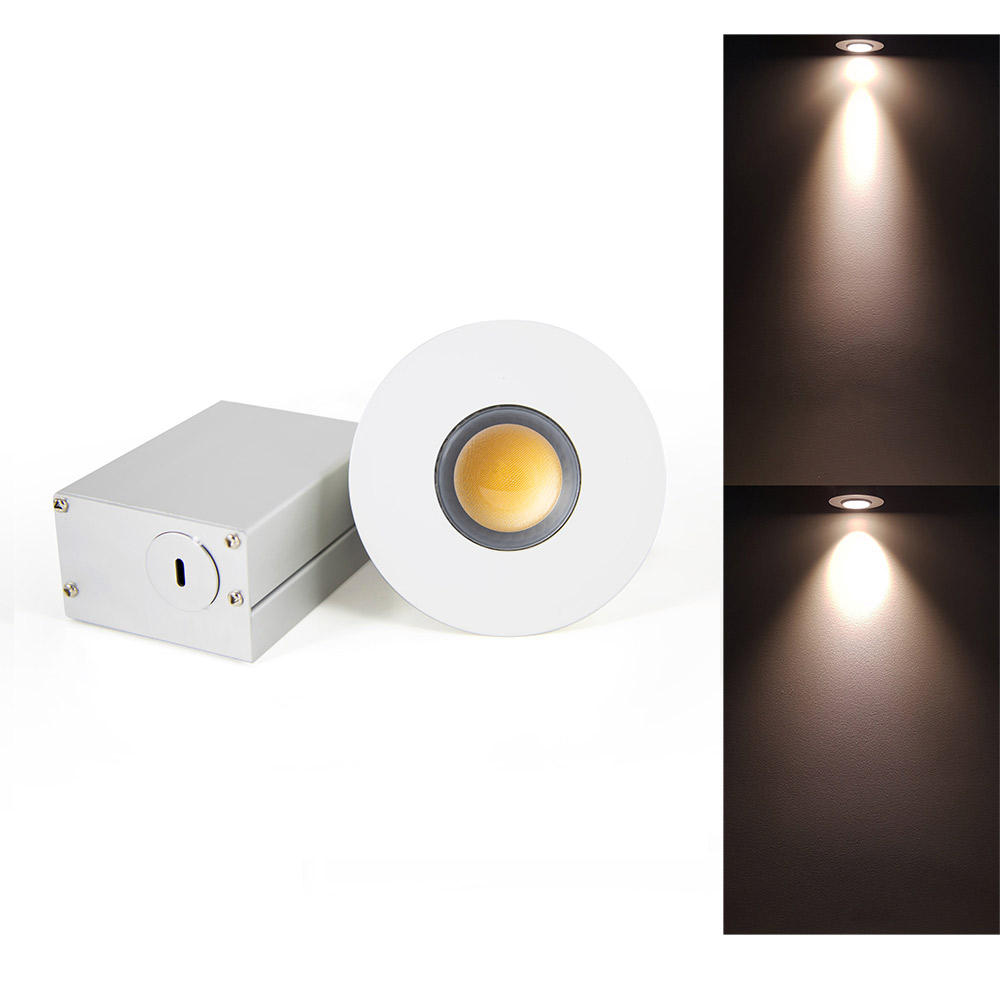

ALEDECO Global's 3” Gimbal LED Downlight is a collection of beam degree adjustable downlights which are available in different voltages, trim styles, and finishes. This downlight is suitable for low clearance applications, soffit lighting, and architectural lighting.

Includes a light engine and dimmable driver.

Patent pending.

Specifications Chart

Product Code ALED-HV01-RD-F
Input Voltage 120V AC
Wattage 8W
Beam Degree Adjustable from 20 - 40°
Lumens 775
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K
Trim Colors Brushed Nickel, Black, White
Housing Aluminum
Hole Cutout Ø23/4" (70mm)
Trim Dimensions 311/32" (85mm)
Certifications cETLus & Energy Star

Features

  • 360° gimbal rotation
  • Beam angle adjustable 20 to 40°
  • Dimmable
  • Hardwire junction box
  • Patent pending

Applications

  • Downlighting
  • Soffit lighting
  • Low clearance lighting
  • Architectural
