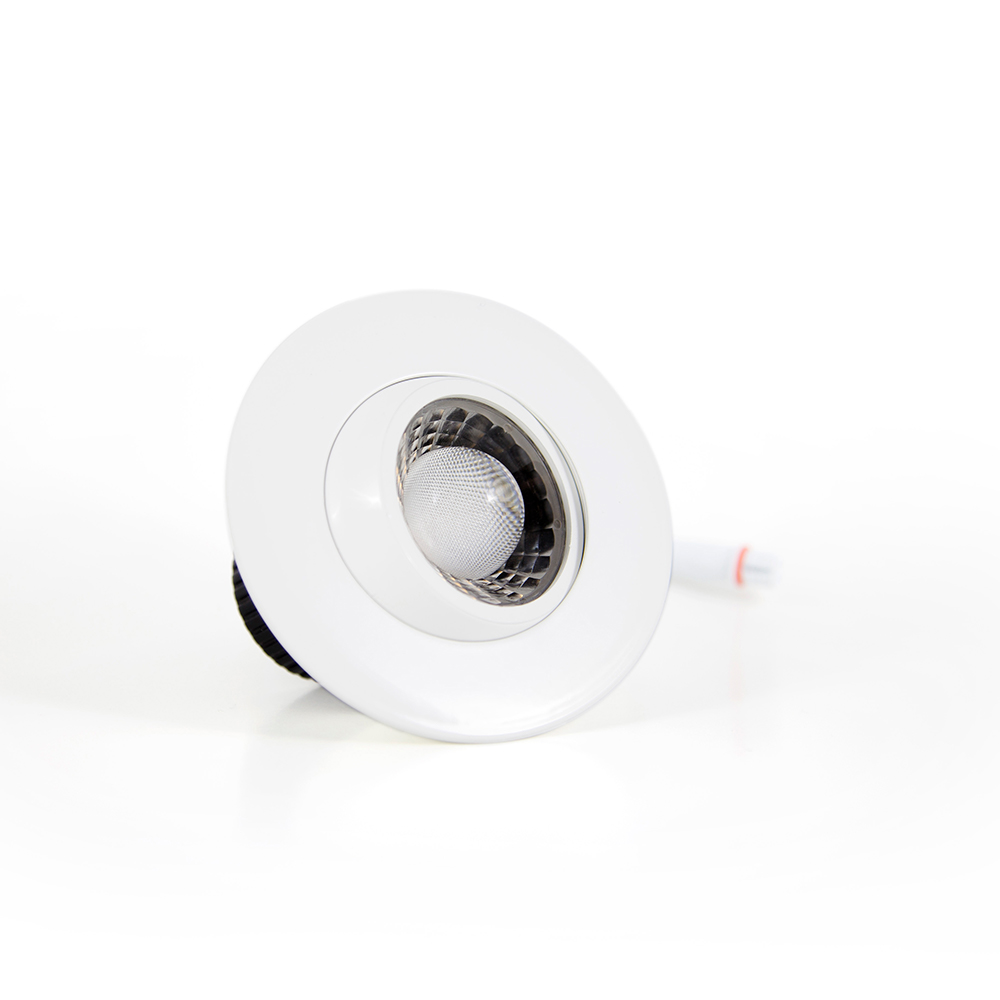

Low Voltage Round Gimbal LED Downlight

Print
NEW Low Voltage LED Downlight available in 12V or 24V DC, includes an adjustable beam degree from spotlight to floodlight. IC & Damp location rated.
Description

ALEDECO Global's 3” LED Downlight is a collection of beam degree adjustable downlights which are available in different voltages, trim styles, and finishes. This downlight is suitable for low clearance applications, soffit lighting, and architectural lighting.

Low voltage version includes a light engine.

Specifications Chart

Product Code ALED-RD01-G
Voltage 12V or 24V DC
Wattage 8W
Beam Degree Adjustable from 20 - 40°
Lumens 775
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / (RGBW - 24V DC)
Trim Colors Brushed Nickel, Black, White
Housing Aluminum
Hole Cutout Ø23/4" (70mm)
Trim Dimensions 311/32" (85mm)
Certifications cETLus & Energy Star

Features

  • 360° gimbal rotation
  • Beam angle adjustable 20 to 40°
  • Simple installation
  • Dimmable

Applications

  • Downlighting
  • Soffit lighting
  • Low clearance lighting
  • Architectural
