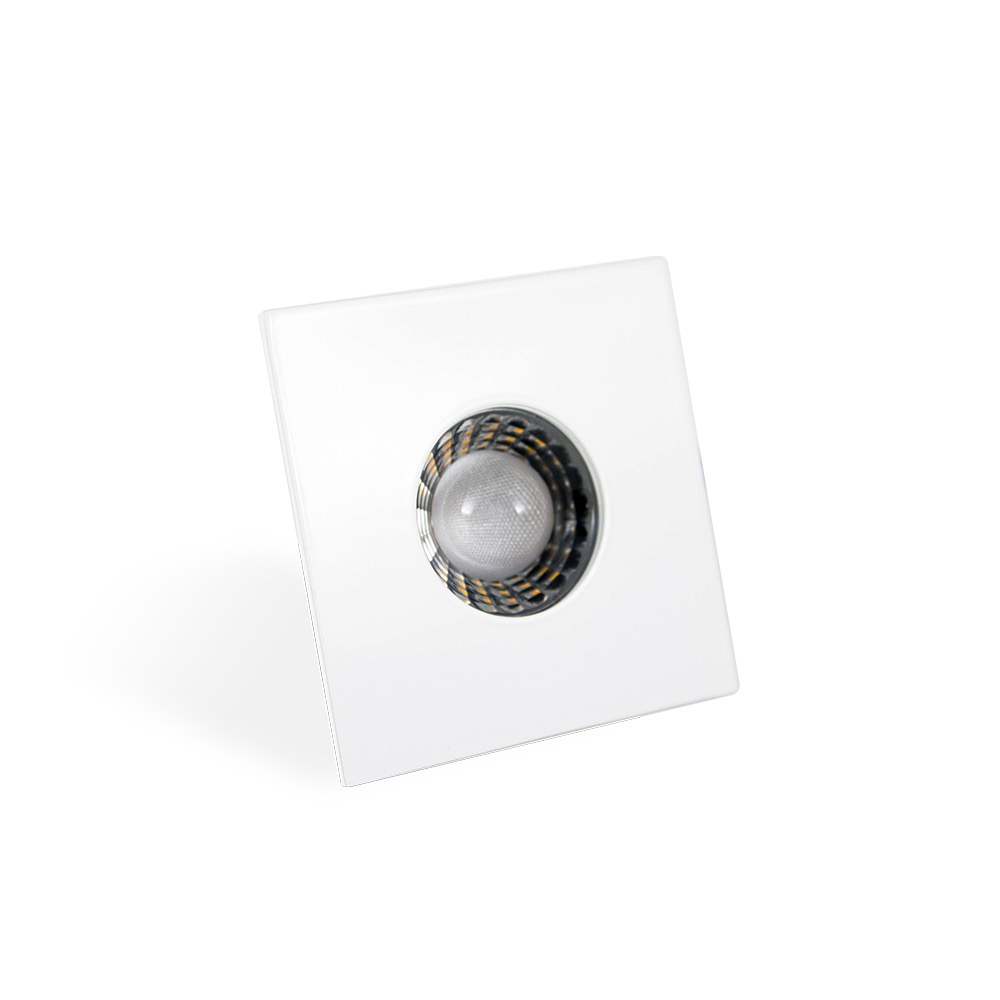

Low Voltage Square LED Downlight

NEW Beam Degree Adjustable Downlight is available in 12V or 24V DC and four color temperature options including RGBW. IC & Damp location rated.

ALEDECO Global's 3” LED Downlight is a collection of beam degree adjustable downlights which are available in different voltages, trim styles, and finishes. This downlight is suitable for low clearance applications, soffit lighting, and architectural lighting.

Low voltage version includes a light engine.

Patent pending.

Specifications Chart

Product Code ALED-SQ01-G
Voltage 12V or 24V DC
Wattage 8W
Beam Degree Adjustable from 20 - 40°
Lumens 775
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / (RGBW - 24V DC)
Trim Colors Brushed Nickel, Black, White
Housing Aluminum
Hole Cutout Ø23/4" (70mm)
Trim Dimensions 311/32" (85mm)
Certifications cETLus & Energy Star


  • Beam angle adjustable 20 to 40°
  • Simple installation
  • Dimmable
  • Hardwire junction box


  • Downlighting
  • Soffit lighting
  • Low clearance lighting
  • Architectural
