RD7 Surface Mount LED Cabinet Light

Print
For recess or surface mount installation. Offers excellent light output and color temperature while only consuming 2W. cETLus Listed LED Cabinet lighting. Cut Out 1.75"
Description

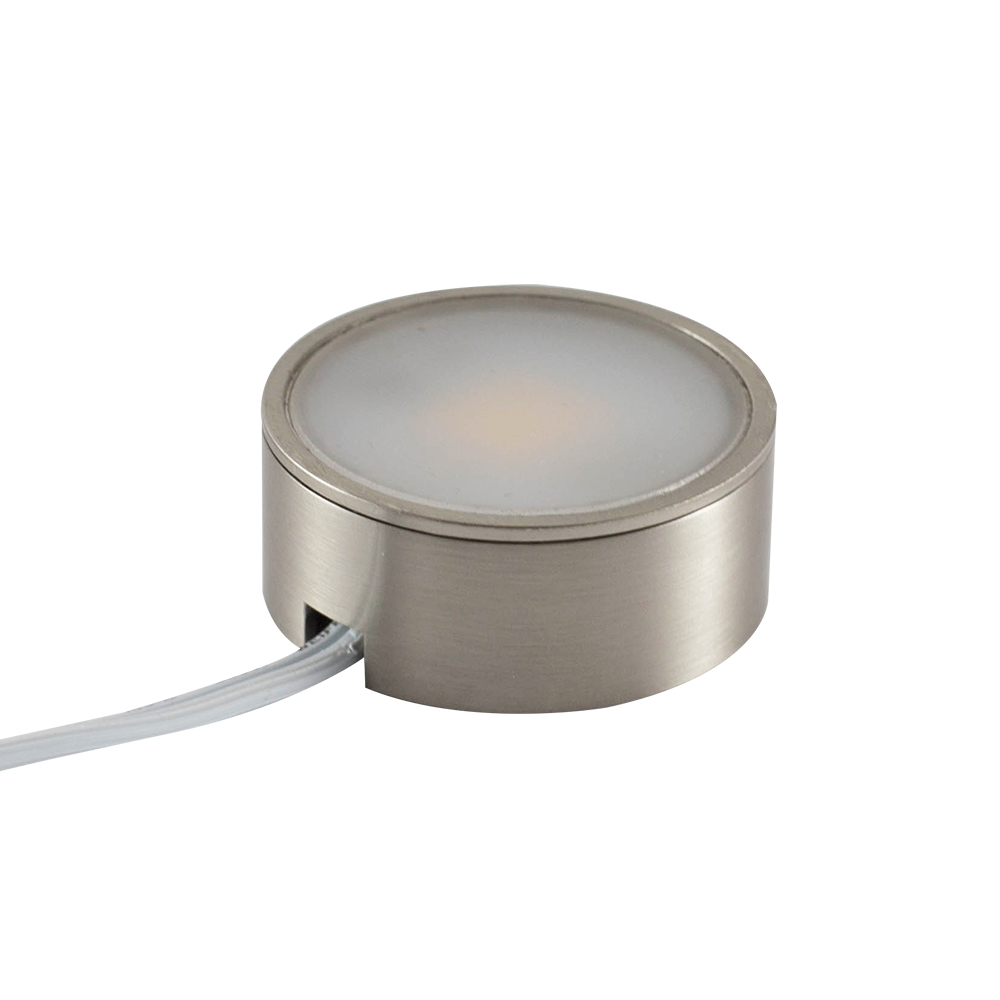

ALEDECO Global's RD7 LED Cabinet Light includes a surface mount bezel and recessive 1.75" LED light engine housing 12 Super bright SMD LEDs, or 30 LEDs. Available in a frosted or clear lens. Thin profile, low heat, and long lifespan allow this LED cabinet light to directly replace existing high heat halogen under cabinet lights.  Snap-on trims available

Our RD7-12 SMD is fully dimmable with either a low voltage PWM dimmer or a line voltage dimmable transformer, please contact us for further details.


Specifications Chart

Product Code ALED-RD7-S
Voltage 12V (or 24V DC or 10-30V DC)
Wattage 2W
# of LEDs 12
Lumens 185
Beam Degree 120°
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB (4 wire) / CCT
Dimensions Ø1.97 x H0.75"  (Ø50 x H15mm)
Housing Surface mount housing with metal trims
Hole Cutout Size Ø1.75" (45mm)
Replaces 15W Halogen
Dimmable Yes
Certifications cETLus (UL & CSA recognized) CE

Features

  • SMD LED technology
  • Recessed & surface mount options (easy snap-on trims)
  • Modern clean design
  • Clear or frosted glass lens
  • Available finishes - Brushed nickel, black or white or custom
  • +50,000 hour lifespan
  • Full Sets Available with custom packaging (Options include: LED Drivers, # of LED Puck Lights, switches, plug, wire lengths)

Applications

  • Cabinet lighting
  • Display lighting
  • RV & Yacht
  • Furniture lighting
Surface Mount Install

Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
