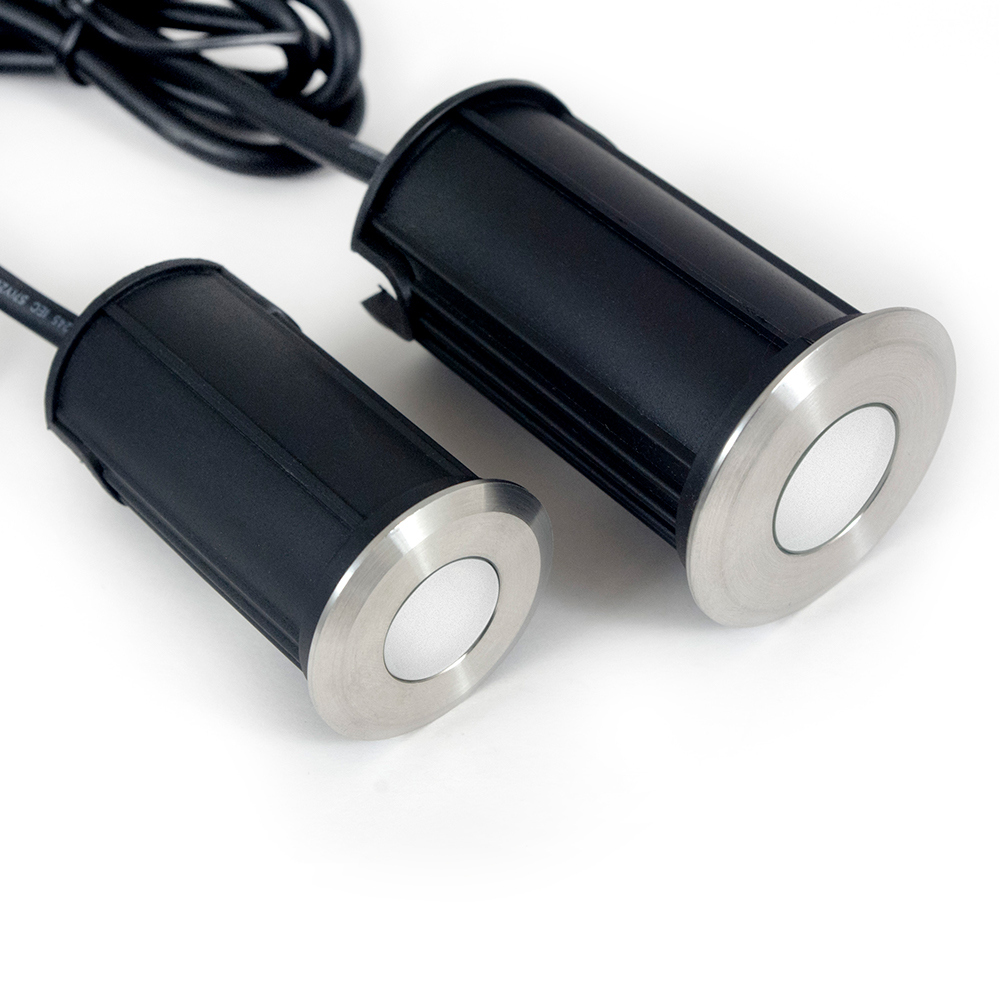

1W or 3W Inground LED Light
Available in 1W and 3W version, the LED light has a 120° frosted lens in a waterproof housing with a stainless steel round trim. Designed to be walked on or driven on and available in 12V or 24V DC. Each light includes a sleeve for a concrete pour.
2 Size Options available for 1W or 3W brightness.
Can be Packaged in custom sets for Private Label Customers, waterproof connectors with Harness and UL or CE Listed LED Driver in Color Packaging if requested
2 Size Options available for 1W or 3W brightness.
Can be Packaged in custom sets for Private Label Customers, waterproof connectors with Harness and UL or CE Listed LED Driver in Color Packaging if requested
Description
Specifications Chart
| Product Code | ALED-RD16-1W | ALED-RD17-3W |
| Voltage | 12V or 24V DC | 12V or 24V DC |
| Wattage | 1W | 3W |
| # of LEDs | 1 | 1 |
| Color Temperature | WW 2700K / 3000K / 4000K / CW 6000K / (RGB - 4 wire) | WW 2700K / 3000K / 4000K / CW 6000K / (RGB - 4 wire) |
| Beam Degree | 120° Frosted Lens | 120° Frosted Lens |
| Lumens | 100 | 290 |
Features
- Uplighting for concrete and wood
- Low power consumption
- High brightness LED technology
- Dimmable
- All trims available in all styles and colors
- +50,000 hour lifespan
Applications
- Concrete light
- Deck light
- Infloor light
- Landscape light
Product Details
| Housing | Aluminum |
| Diameter | 1-11/16" (43mm) |
| Height | 2-7/8" (72mm) |
Tech Details
| IP Rating | IP67 |
| Location | Wet |
| Certification | RoHS Complaint, cETLus, CE |
Downloads
