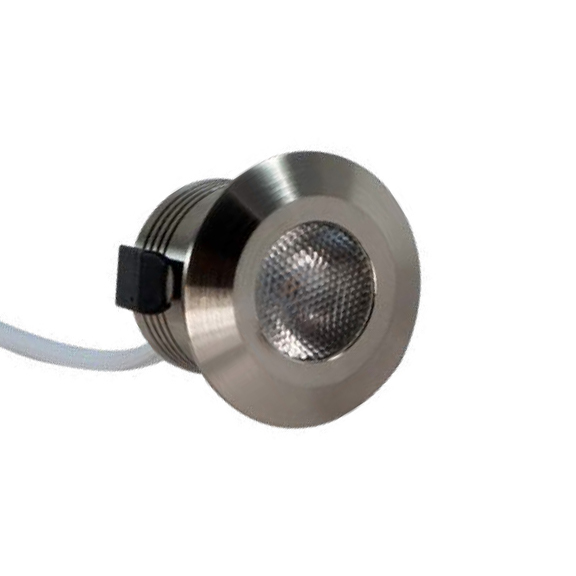

RD23 Mini LED Light

Print
Recess installed RD23 LED mini light includes a 3W CREE COB LED 25° spotlight. We can make the light in 24V DC or 12V DC.

Light color options: 2700K, 3000K, 4000K, 6000K.  Also, RGB color changing for 12V DC.

1-1/4" (32mm) hole cutout.
Description

Specifications Chart

Product Code ALED-RD23
Voltage 12V or 24V DC
Wattage 3W
# of LEDs 1 CREE COB LED
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB
Lumens 235
Beam Degree 25°

Features

  • 25° spotlight
  • 3W CREE COB LED
  • 12V or 24V DC operation
  • 17/32" (31mm) cutout hole
  • Sleek modern finish
  • Spring clips to allow simple pressure fit installation

OEM custom wire harness lengths available.


Applications

  • Downlight
  • Gimbal light
  • Display lighting
  • Cabinet lighting

 Product Details

Housing Aluminum
Diameter 1-3/8” (35mm)
Height 1-1/4" (32mm)
Hole Cutout 1-1/4" (32mm)
Finish Brushed Nickel, Black, White, Custom
Mounting Recessed only
Dimmable Yes

 Tech Details

IP Rating N/A
Location Dry
Certifications RoHS Compliant, cETLus, CE
