Mini Recess Swivel LED Spotlight

Print
Mini Recess Swivel LED Spotlight includes a 3W CREE LED built into swivel housing. The swivel light is adjustable and offers a 25° beam spread. Available in 12V DC or 24V DC. This swivel light is dimmable with either a low voltage 12V DC PWM dimmer or a 120V volt dimmable transformer, please contact us for further details.

Light color options: 2700K, 3000K, 4000K, 5000K RGB color changing for 12V DC.

Hole cutout 1.75" (45mm)
Description

Specifications Chart

Product Code ALED-RD24-3W
Voltage 12V or 24V DC
Wattage 3W
# of LEDs 1 CREE COB LED
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / RGB
Lumens 275
Beam Degree 25°

Features

  • 25° spotlight
  • Swivel light adjustable
  • 3W CREE COB LED
  • 12 or  24V DC
  • 13/4" (45mm) cutout hole
  • Sleek modern finish
  • Spring clips allow simple pressure fit installation

OEM custom wire harness lengths available.

Applications

  • Downlight
  • Gimbal light
  • Display lighting
  • Cabinet lighting

Product Details

Housing Aluminum
Diameter 2-1/16” (Ø52mm)
Height 1-1/2" (38mm)
Cutout Size 1-3/4" (45mm)
Finish Brushed Nickel, Black, White, Custom
Mounting Recessed only
Dimmable Yes

Product Details

IP Rating N/A
Location Dry
Certifications RoHS Compliant, cETLus, CE
Ask a question about this product

Downloads

Download Spec Sheet

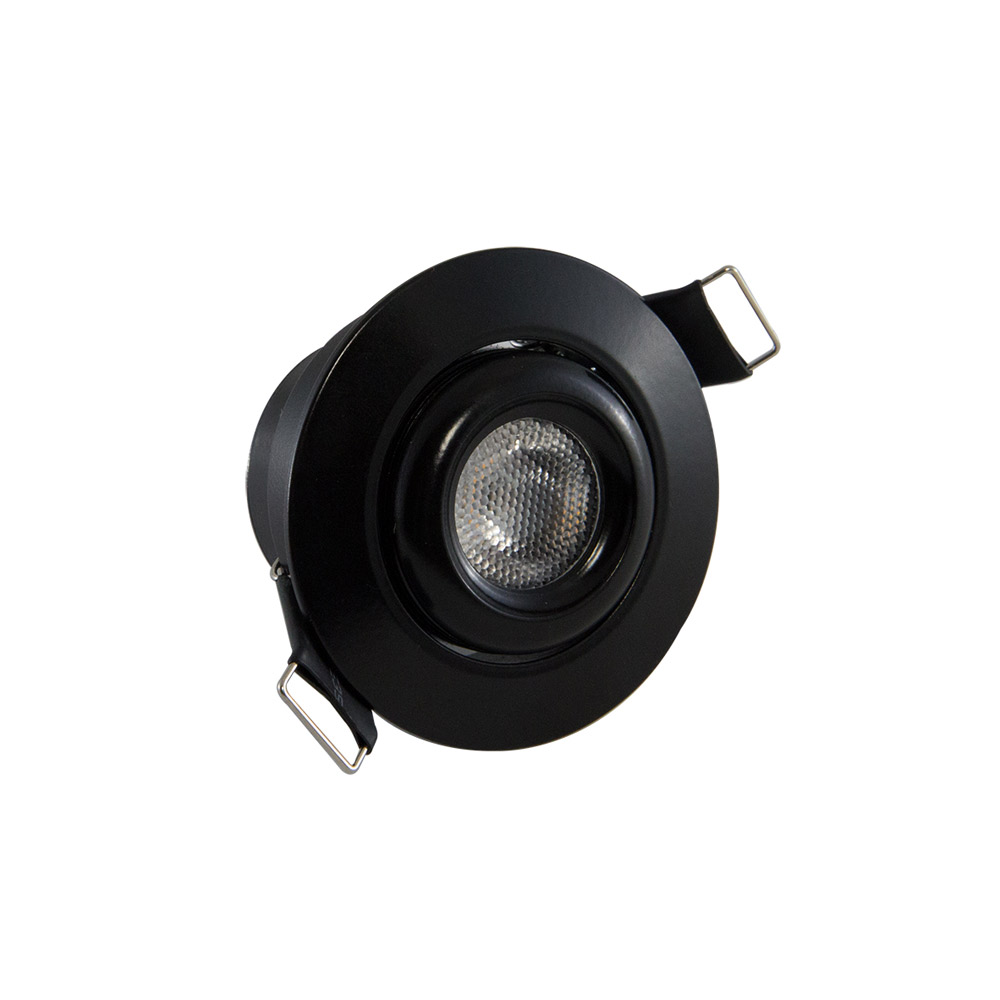

RD24 Black Trim

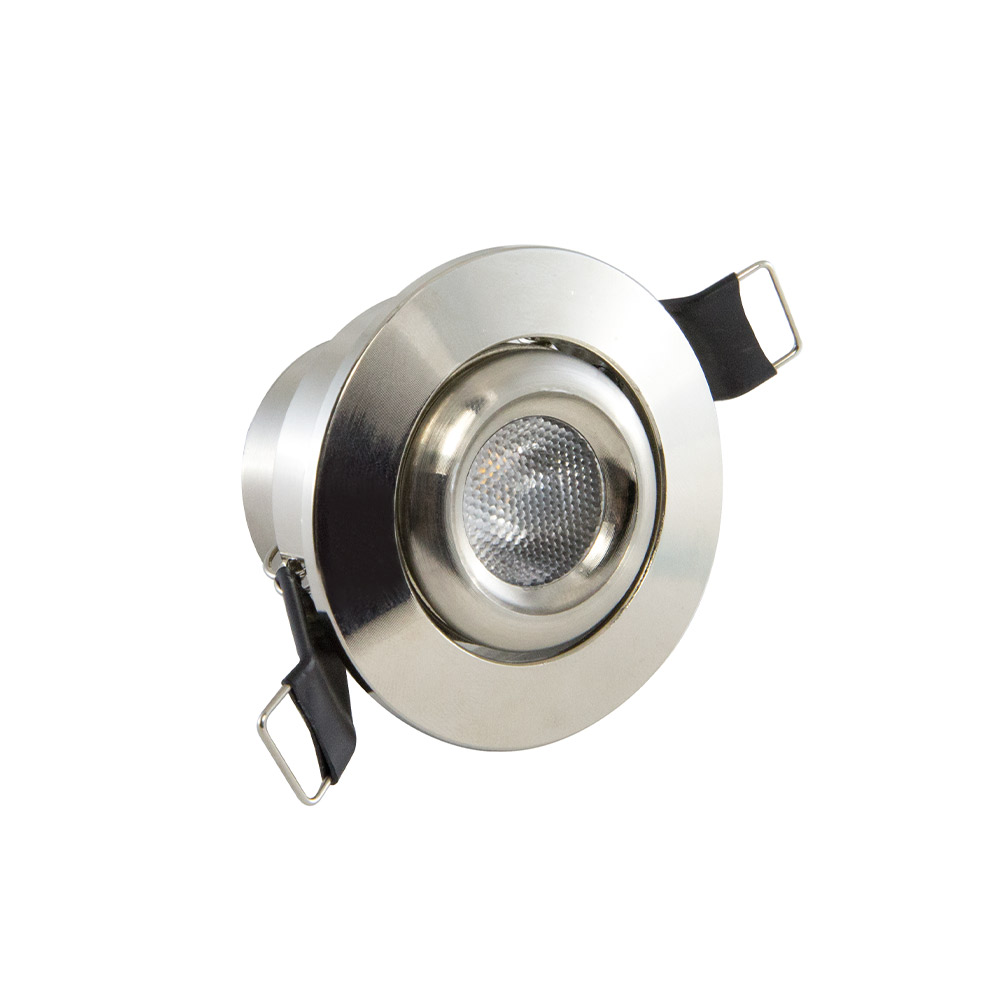

RD24 Brushed Nickel Trim

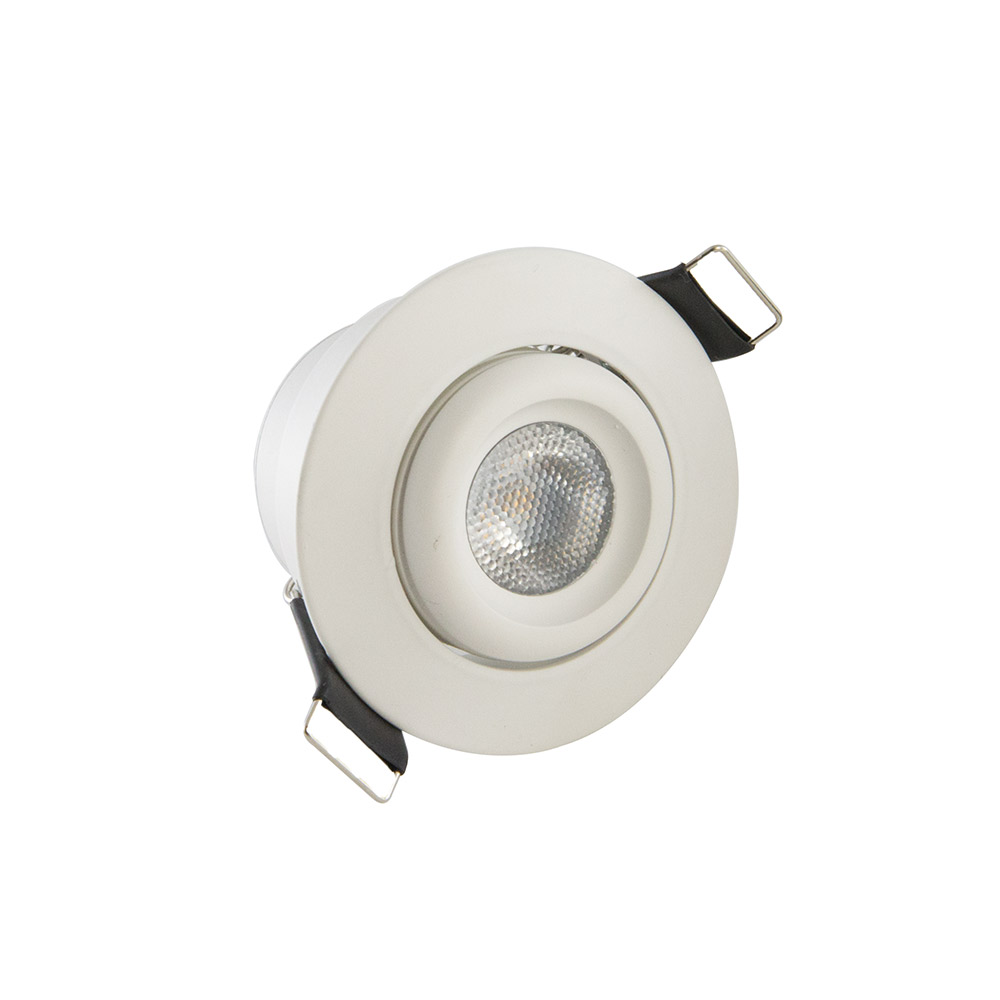

RD24 White Trim
