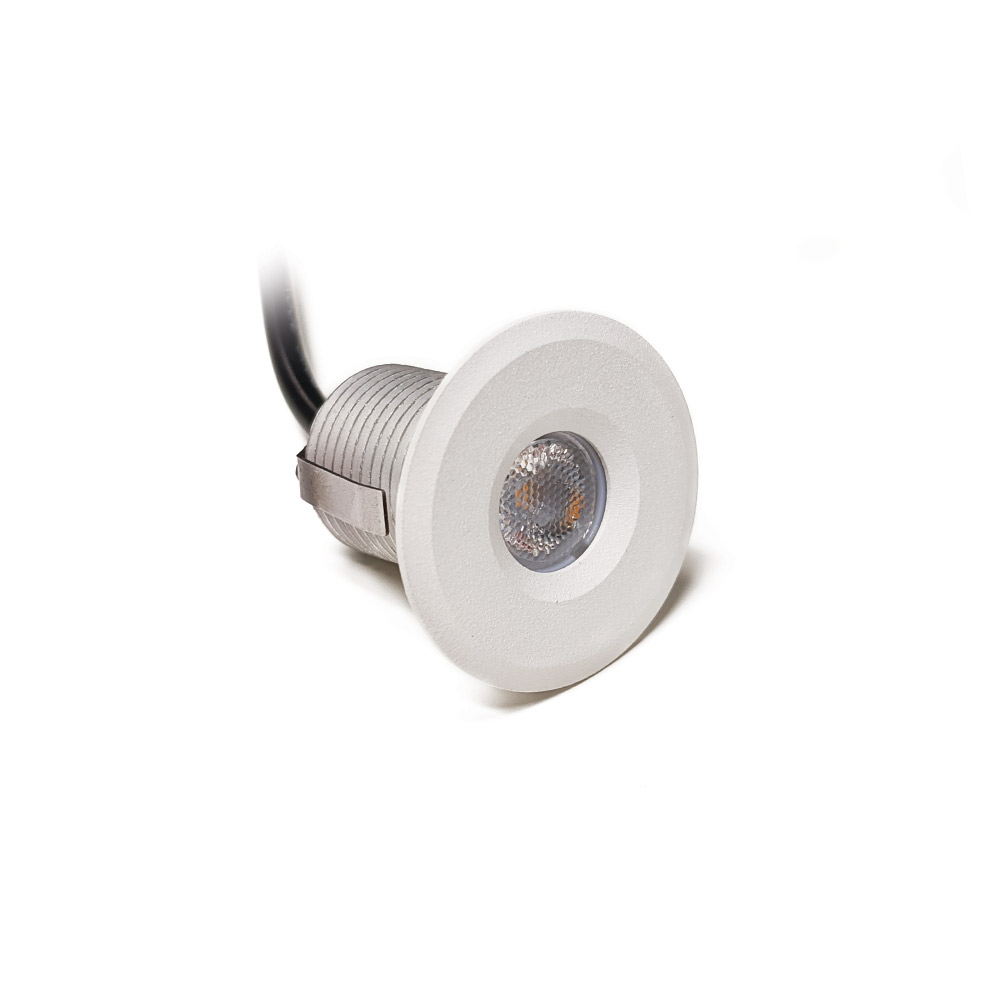

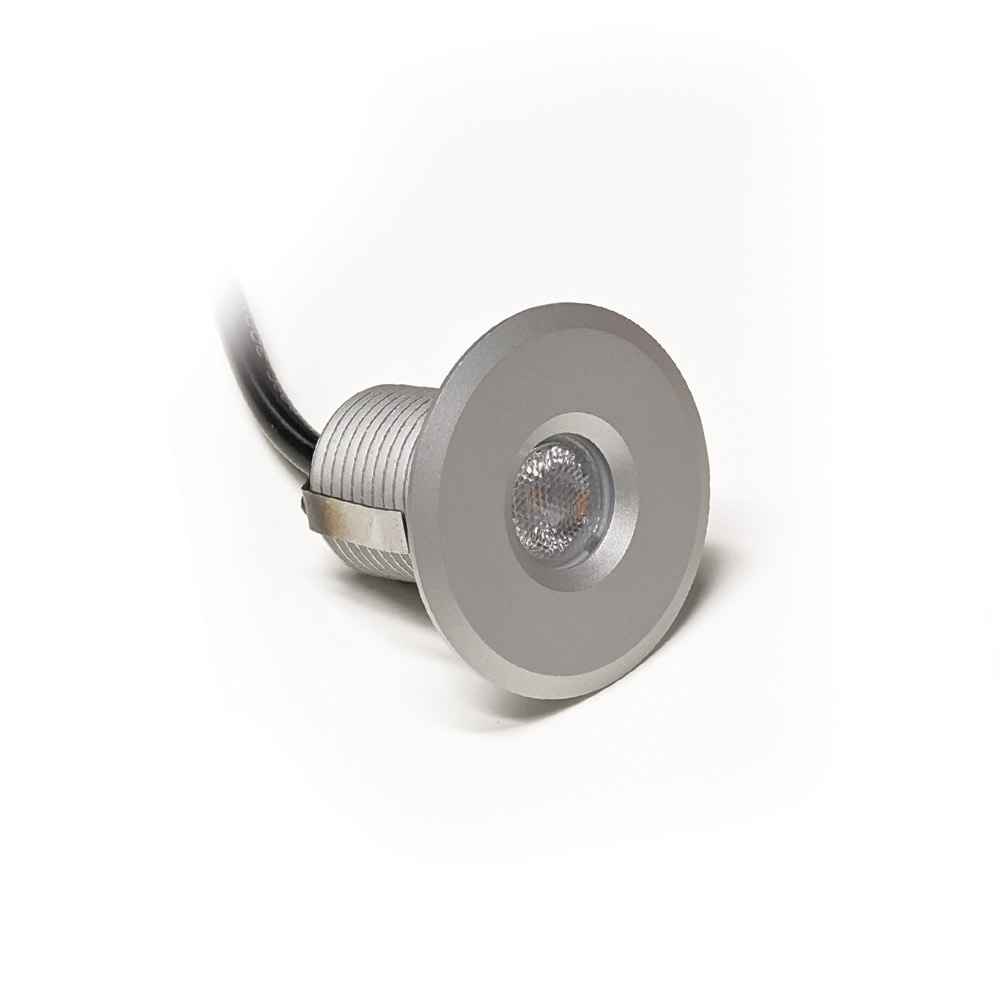

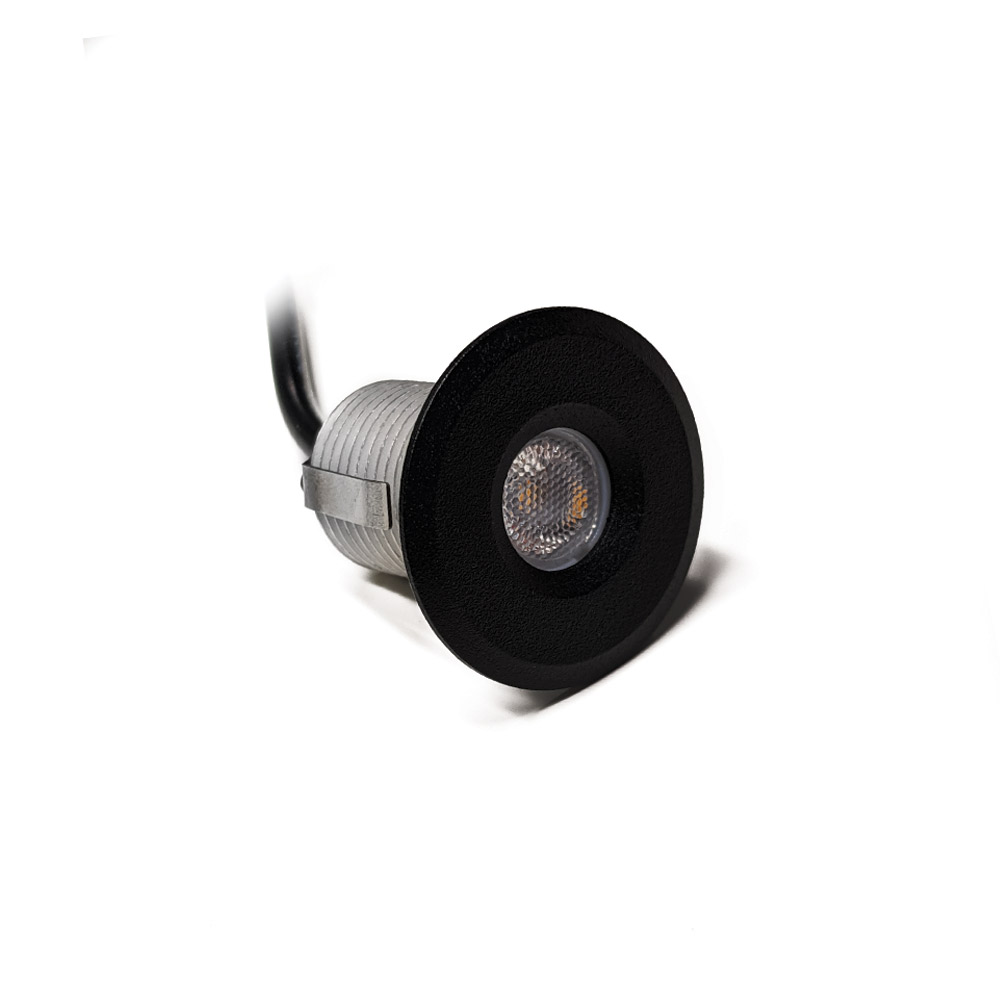

1" Mini Recessed LED Puck Light

Print
New Ultra Mini LED Puck Light fits 1" or 7/8" hole cutout. Made of aluminum, our Mini LED Deck Light offers an excellent light output of 70 lumens. Fully sealed for outdoor use.
Description

ALEDECO Global's New 1" Mini Recessed LED Step Light is low voltage, 0.8W with 1 Power LED.

With 35mm or 30mm trims options, this puck light is for recessed installation and great for indoor and outdoor applications (IP66).

Dimmable with dimmable driver.

 Specifications Chart

Product Code ALED-RD28-1
Voltage 12V DC or 24V DC
Wattage 0.8W
# of LEDs 1 Power LED
Lumens 70
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K / 6000K
Dimensions Ø11/16 x L13/8" (Ø17 x L29mm)
Hole Cutout Ø1” (Ø25mm), also fits a 7/8” (22mm) hole
Trim Options Round 30mm/35mm/45mm
Finish Options Brushed Nickel, Black, White, Chrome or Custom
IP Rating IP66
Certifications RoHS Compliant, cETLus, CE

Features

  • Ultra mini 1" LED recessed light
  • Fully sealed for outdoor use
  • Light engine and trims sold separately
  • Bolt available for installation, no springs (ALED-RD28-B-1)
  • Dimmable
  • +50,000 hour lifespan
  • 3 years warranty

Applications

  • Step lighting
  • Deck lighting
  • Display lighting
  • Cabinets lighting
