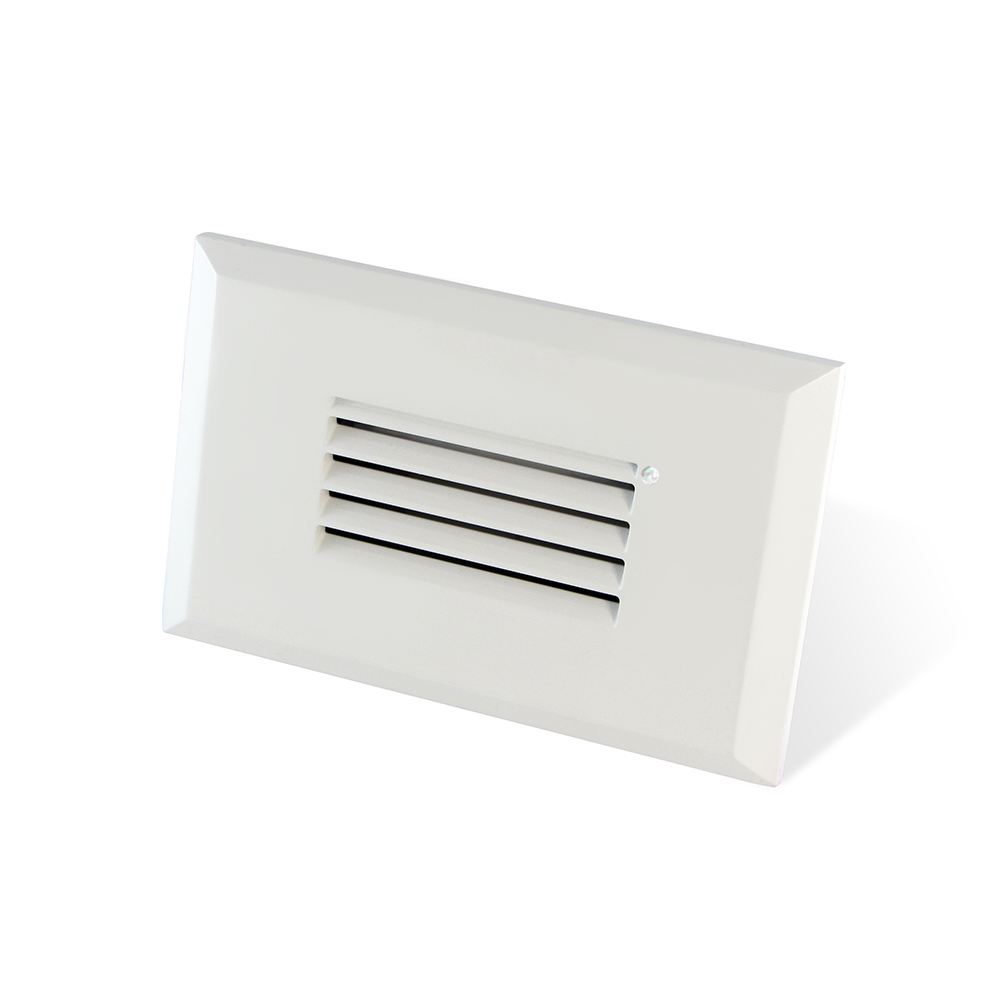

Motion Sensor LED Step Light

Turns on when it senses a human near, this LED step light available fits single gang junction boxes and includes a motion sensor light engine with a trim. Choose from a variety of trim styles and colors, including window, horizontal louvered and vertical louvered.

ALEDECO Global's New Motion Sensor Screwless LED Step Light functions when human is near. This fixture is suitable for stair, deck, and path lighting and fits with standard single gang North American junction boxes. The light engine and trim can be packaged together or separately.

Wet location rated for indoor and outdoor applications.

Specifications Chart

Light Engine Code ALED-RT05HV-MS (High Voltage)
ALED-RT05LV-MS (Low Voltage)
Voltage 100-120V AC or 12V AC/DC
Wattage 2W
Lumens 145
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K
Dimensions Fits standard single gang North American junction box
Trim Code ALED-RT05
Trim Options Window, Horizontal Louvered, Vertical Louvered
Finish Options Brushed Nickel, Black, White, Dark Brown, Chrome, or Custom
Certifications RoHS Compliant, cETLus, CE - wet location rated


  • For indoor & outdoor applications
  • cETLus listed for indoor and outdoor wet applications
  • Fits standard North American junction boxes
  • All trims available in all styles and colors
  • Dimmable
  • +50,000 hour lifespan
  • 3 years warranty


  • Step lighting
  • Path lighting
  • Deck lighting


Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.


Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering


Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
