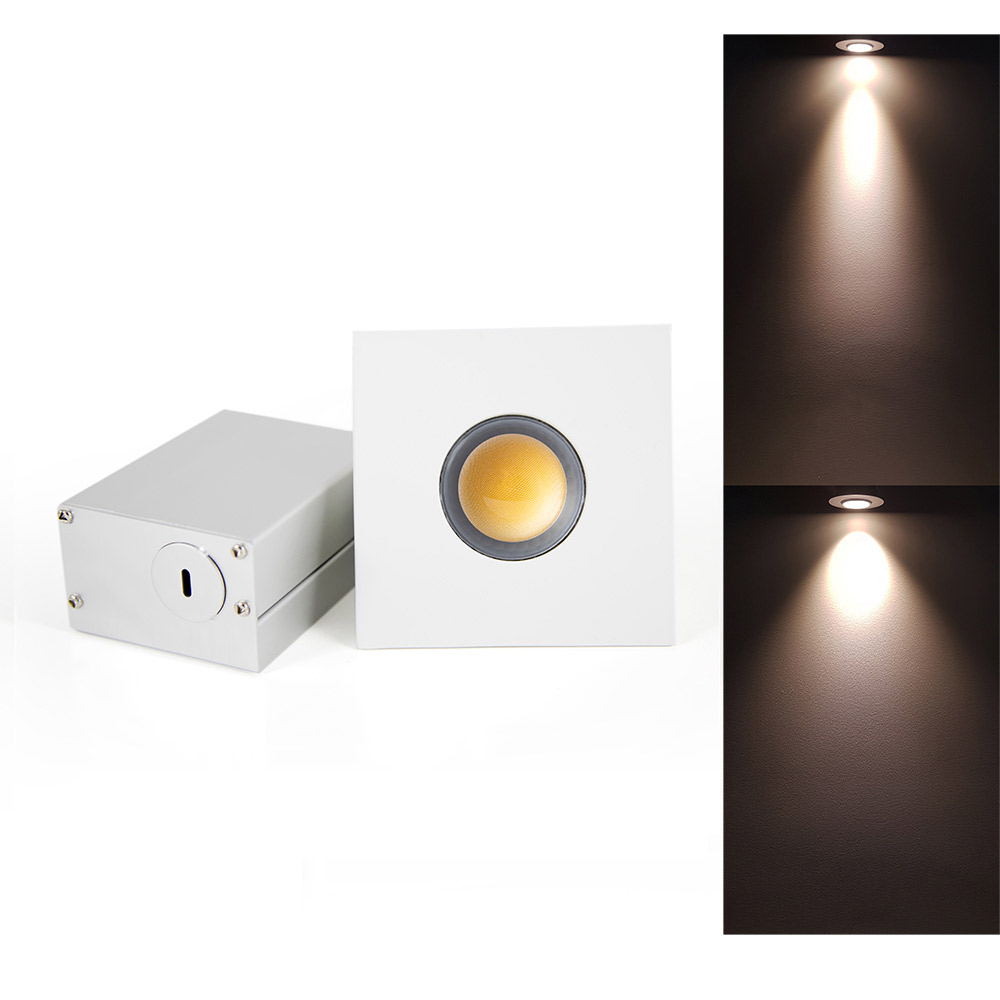

3” Square LED Downlight

Print
New Square Beam Degree Adjustable Downlight available in high voltage flat style trim with four color temperature options. Includes dimmable hardwire driver. IC & Damp location rated.
Description

ALEDECO Global's 3” LED Downlight is a collection of beam degree adjustable downlights which are available in different voltages, trim styles, and finishes. This downlight is suitable for low clearance applications, soffit lighting, and architectural lighting.

Includes a light engine and dimmable driver.

Patent pending.



Specifications Chart


Product Code ALED-HV01-SQ-F
Input Voltage 120V AC
Wattage 8W
Beam Degree Adjustable from 20 - 40°
Lumens 775
Color Temperature WW 2700K / 3000K / 4000K / CW 5000K
Trim Colors Brushed Nickel, Black, White
Housing Aluminum
Hole Cutout Ø23/4" (70mm)
Trim Dimensions 311/32" (85mm)
Certifications cETLus & Energy Star



Features


  • 360° gimbal rotation
  • Beam angle adjustable 20 to 40°
  • Dimmable
  • Hardwire junction box
  • Patent pending



Applications


  • Downlighting
  • Soffit lighting
  • Low clearance lighting
  • Architectural
