RD10 LED Light with Mix Match Trims

Print
RD10 Parts System provides LED light engine and trims sold separately. cETLus listed and wet location rated. Can be recessed or surface mounted. The cutout is 2.25" (60mm recessed hole).
Description

ALEDECO Global's newest, brightest 2W or 4W LED puck light for surface or recess install.

Made in metal (for good heat management) with a frosted glass housing and includes a surface mount and a powder-coated very beautiful trim in Brushed Nickel, Black, White or Custom (custom color available can be requested).  This light uses 2W or 4W COB LED and can be made into sets or custom wire harness.

Can be Packaged in custom sets for Private Label and OEM, ODM Customers.


 Light Engine Options

Select a color temperature:

Code Wattage  Voltage Color Temp Lumens
ALED-RD10-2W 2W 12V or 24V DC 2700K (27K) / 3000K (3K) / 4000K (4K) / 5000K (5K) / RGB - 4 wire (RGB) / Dim to Warm (DTW) 320
ALED-RD10-4W 4W 12V or 24V DC 2700K (27K) / 3000K (3K) / 4000K (4K) / 5000K (5K) / RGB - 4 wire (RGB) / Dim to Warm (DTW) 320

XX = Color Temperature


 Trim Options

Select trim style and finish:

Code Trim Style Finish Color
ALED-RD10-TRIM-## Recessed Brushed Nickel (BN), Black (BK), White (WT)
ALED-RD10-SM-## Surface Mount (Optional) Brushed Nickel (BN), Black (BK), White (WT)
ALED-RD10-SC-## Scoop (Optional) Brushed Nickel (BN), Black (BK), White (WT)

## = Trim Color

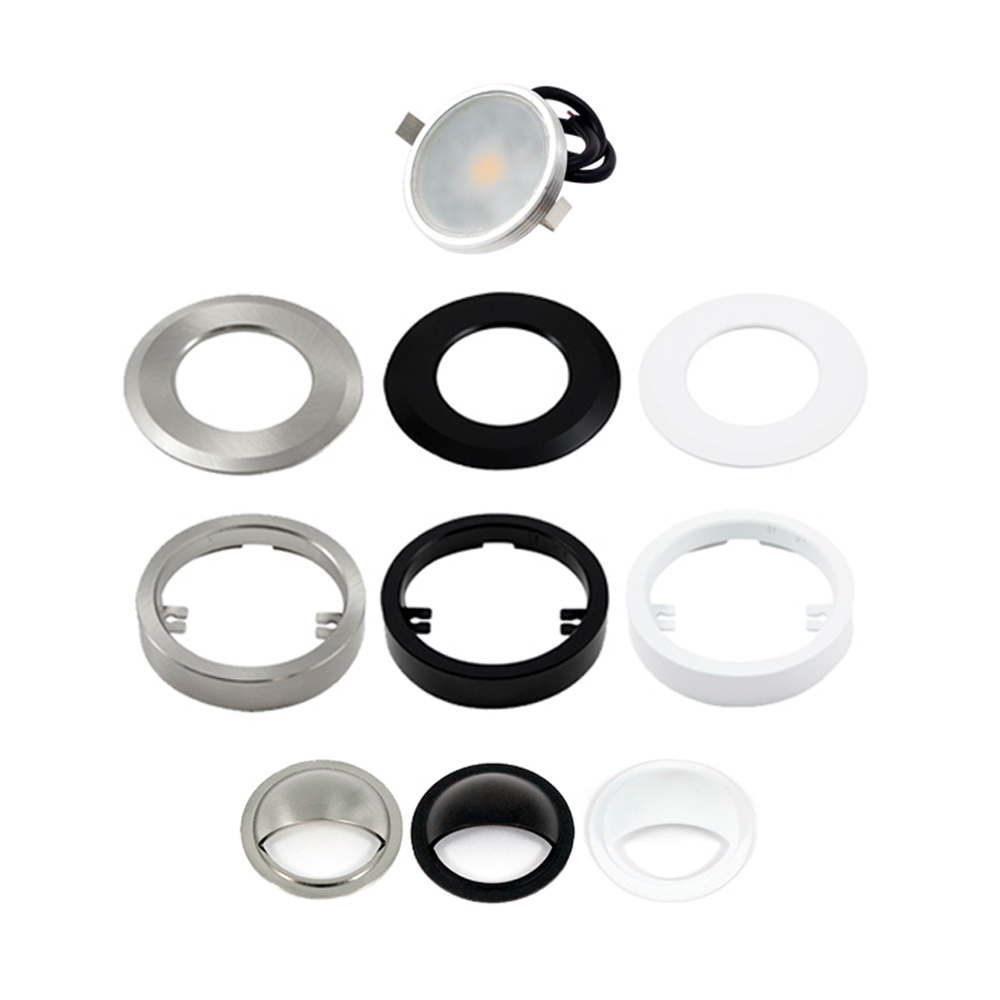

 Aledeco RD10 Parts System

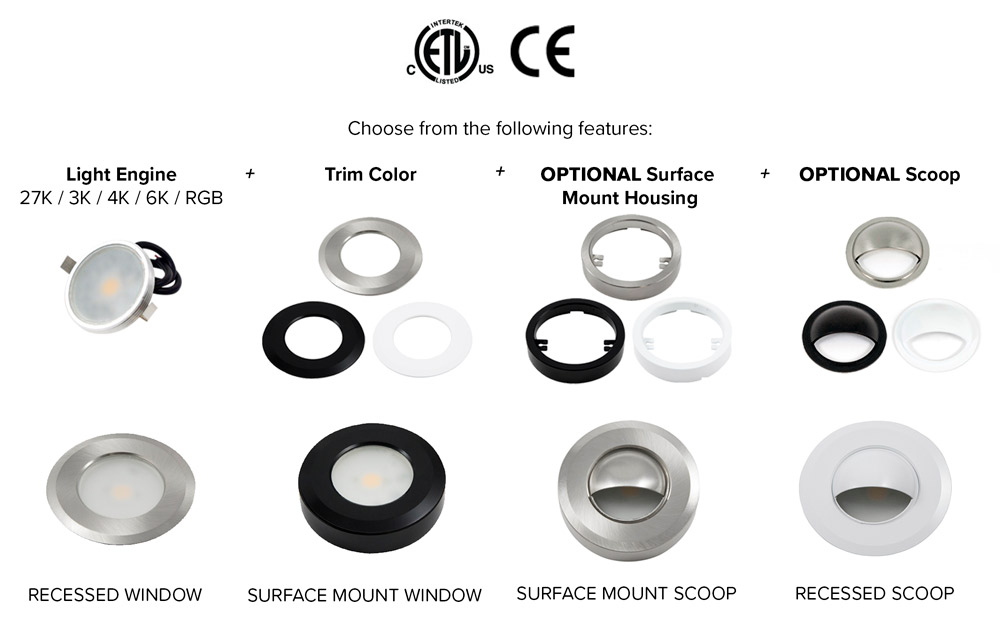

RD10 Parts System

Manufacturing

Over 6000 Square Meter LED Lighting Factory with our own in house Plastic mould and tooling production, that means we can control the quality in our factory by owning the moulds and tooling.

R&D

Aledeco Global LED specializes in the research and development of solid state LED lighting product for over 13 years. We have developed many LED lighting products, both for our own offering

Certifications

Aledeco Global China has CE and cETLus (UL and CSA) Listed LED product for Low voltage LED cabinet Lights and outdoor lights, cETLus listed for Wet location LED Step Lights.
